| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Height | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

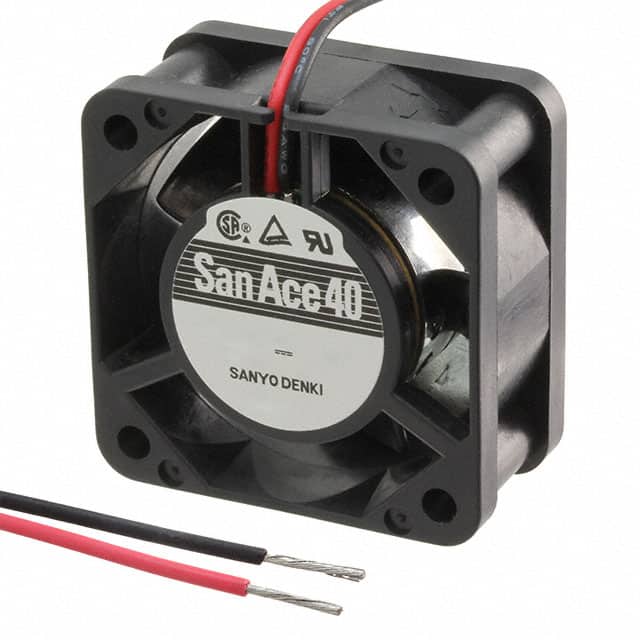

The Sanyo Denki 109P0412H302 is a tubeaxial DC brushless fan designed for efficient cooling in space-constrained applications. With a compact 40mm x 40mm x 28mm frame, it operates at 12VDC and consumes 2.34W of power. The fan delivers 8700 RPM airflow with a noise output of 37.0 dB(A), making it suitable for moderate noise environments.
Mechanically, the fan uses a ball bearing system for extended service life and includes two 28 AWG wire leads for simple electrical connection. It weighs 52.16 g and operates reliably over a temperature range of -20°C to 70°C. The fan is approved by CSA, TUV, and UL for safety compliance.
Environmental compliance includes RoHS3 (unverified), MSL Level 1, and REACH unaffected status, though these certifications are not fully verified. The fan is intended for general-purpose cooling in electronics, telecommunications, and industrial equipment where reliable forced air convection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.99 | $14.99 |
| 10+ | $12.73 | $12.73 |
| 25+ | $11.78 | $11.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fan operates at 12 VDC.
The fan measures 40mm length, 40mm height, and 28mm width (thickness).
The fan can operate from -20°C to 70°C.
The fan is listed as RoHS3 compliant, but this is unverified and low confidence.
The noise level is 37.0 dB(A).
It uses a ball bearing.
The fan has 2 wire leads.
