Mfr Part #:

109-045

Mfr Name: Bivar Inc.

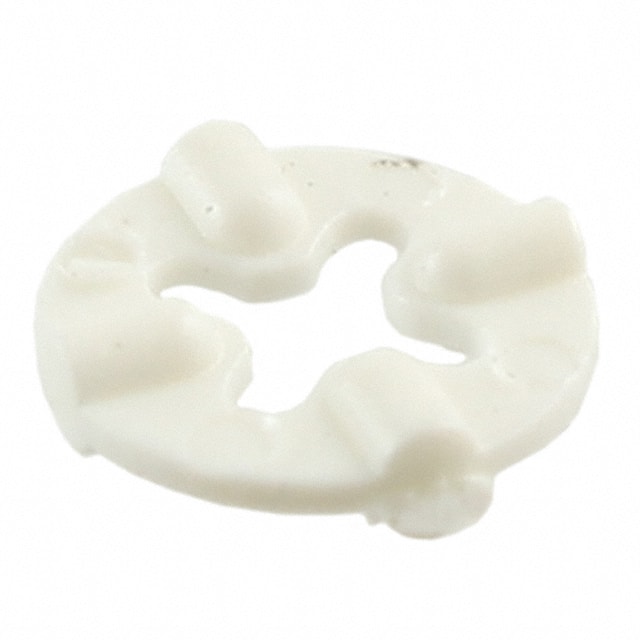

Circular TO-18 mount from Bivar Inc., made of white Nylon 6/6 with UL 94 V-2 flammability rating. Diameter 5.08mm, height 1.15mm.

✓ Total Stock: 3,114 pcs

$ Price Range: $0.10 - $0.24

109-045 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	3,114 pcs On Request	3114 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

109-045 Description

Short technical summary and product information.

The Bivar Inc. 109-045 is a circular mount designed for use with TO-18 transistors. It is molded from white Nylon 6/6 material with a UL 94 V-2 flammability rating, ensuring reliable performance in a variety of electronic assemblies.

The mount has a diameter of 5.08mm (0.200") and a height of 1.15mm (0.045"), providing precise spacing and insulation for TO-18 components. This part is part of the Perm-O-Pad series from Bivar, known for high-quality molded component insulators and mounts.

109-045 Quick Information

Product Type: Component Mount

Series: Perm-O-Pad

Canonical Name: Bivar Inc. 109-045 Perm-O-Pad TO-18 Mount

Subcategory: TO-18 Mount

109-045 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

109-045 Estimated Pricing

Qty	Low	High
1+	$0.24	$0.24
10+	$0.20	$0.20
100+	$0.18	$0.18
500+	$0.15	$0.15
1,000+	$0.14	$0.14
2,500+	$0.13	$0.13
5,000+	$0.12	$0.12
10,000+	$0.11	$0.11
25,000+	$0.10	$0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

109-045 Features

White Nylon 6/6 material construction.
UL 94 V-2 flammability rated.
Circular shape for TO-18 components.
5.08mm diameter and 1.15mm height.
Part of the Perm-O-Pad series.

109-045 Applications

Spacing and insulating TO-18 transistors.
Use in through-hole PCB assemblies.
General purpose electronic mounting applications.

109-045 FAQs

6 frequently asked questions generated from this part’s specifications.

What material is the 109-045 mount made of?

White Nylon 6/6.

What is the flammability rating of the 109-045?

UL 94 V-2.

What is the diameter of the 109-045 mount?

5.08mm (0.200").

What is the height of the 109-045 mount?

1.15mm (0.045").

What component type is the 109-045 designed for?

TO-18.

Is the 109-045 RoHS compliant?

RoHS3 Compliant per existing data (unverified).
