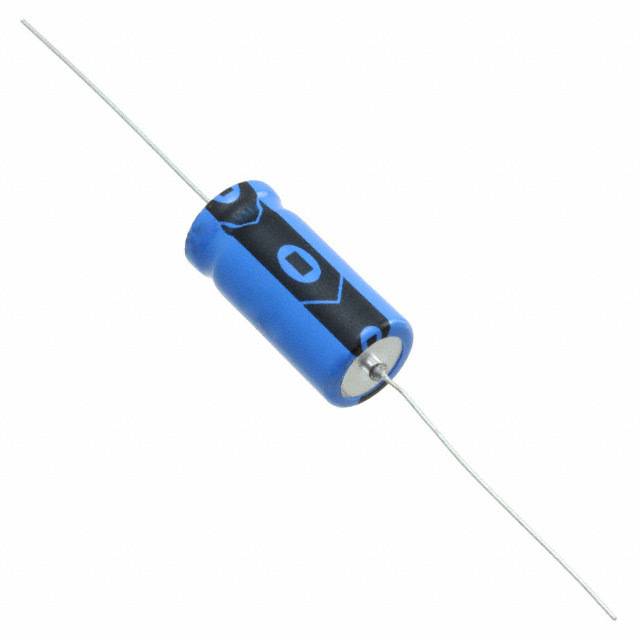

106TTA450M The Illinois Capacitor 106TTA450M is an AXIAL E-CAP aluminum electrolytic capacitor with a 450V rating and 10µF capacitance. It is designed for through-hole mounting.
Mfr Part #:

106TTA450M

Available from 1 distributors
Mfr Name: ILL CAP
ILL CAP
The Illinois Capacitor 106TTA450M is an AXIAL E-CAP aluminum electrolytic capacitor with a 450V rating and 10µF capacitance. It is designed for through-hole mounting.
✓ Total Stock: 14 pcs
$ Price Range: $1.20

106TTA450M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

106TTA450M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
ESR (Equivalent Series Resistance)
Failure Rate
Lead Style
Mounting Type
Operating Temperature
SVHC Present
Storage Temperature
Tolerance
View Similar Products (0)

106TTA450M Description

Short technical summary and product information.

This Illinois Capacitor 106TTA450M is an aluminum electrolytic capacitor from the TTA series, featuring an axial package and through-hole mounting. It offers a capacitance of 10µF with a voltage rating of 450V and a tolerance of ±20%.



The capacitor operates within a temperature range of -25°C to 85°C and has a rated lifetime of 2000 hours at 85°C. Electrical characteristics include a ripple current of 90mA at low frequencies (120Hz) and 153mA at high frequencies (50kHz), with an ESR of 41.447 Ohm at 120Hz.



The component's dimensions are 12.50mm in diameter and 25.00mm in length. It is supplied in bulk packaging. The RoHS status is listed as Lead free / RoHS Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.

106TTA450M Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: TTA
Canonical Name: Illinois Capacitor 106TTA450M Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic

106TTA450M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

106TTA450M Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

106TTA450M Features

  • 10µF capacitance with 450V rating.
  • Axial package, Through Hole mounting.
  • Operating temperature range -25°C to 85°C.
  • 2000 Hrs @ 85°C lifetime.
  • RoHS Compliant status.

106TTA450M Applications

  • Suitable for general purpose applications.
  • Designed for through-hole mounting.
  • Used in circuits requiring 450VDC.
  • Appropriate for 10µF capacitance needs.

106TTA450M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage of the 106TTA450M capacitor?

450V.

What is the package type of the 106TTA450M?

Axial, Can.

What is the operating temperature range of the 106TTA450M?

-25°C to 85°C.

What is the capacitance value of the 106TTA450M?

10µF.

What is the tolerance of the 106TTA450M capacitor?

±20%.

What is the ripple current rating at 120Hz for the 106TTA450M?

90mA.

What is the equivalent series resistance (ESR) at 120Hz for the 106TTA450M?

41.447 Ohm.
