| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
123 pcs
|
123 pcs | On Request | 1 | On Request | On Request | 0721 | On Request | On Request | |
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| ESR (Equivalent Series Resistance) | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width |

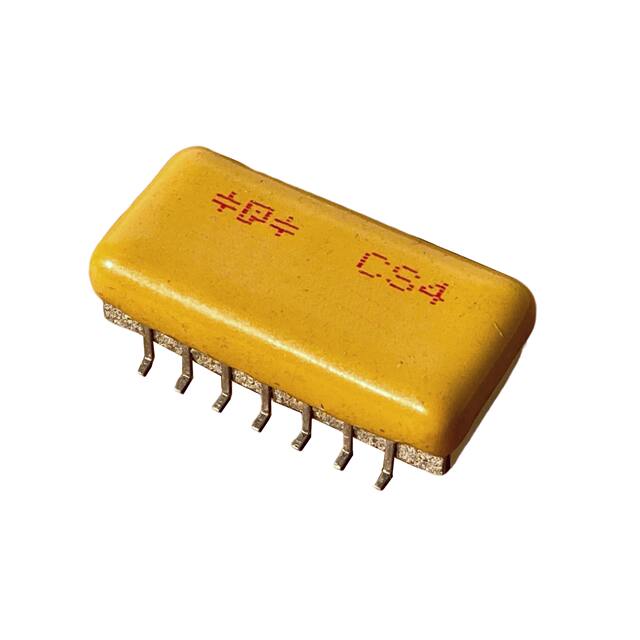

The 106K100CS4G is a 10 µF, 100V metallized polyester film capacitor manufactured by ITW Paktron. It has a ±10% tolerance and features a low equivalent series resistance (ESR) of 3 mΩ. The capacitor is designed for surface mount applications and is housed in a 14-SMD gull wing package with dimensions of 25.30mm length, 12.70mm width, and 6.30mm height. Its 10.00mm lead spacing supports reliable board-level mounting.
This capacitor is suitable for EMI and RFI suppression, as well as high pulse and high dV/dt circuit environments. The metallized polyester dielectric provides stable performance over an operating temperature range of -55°C to 125°C. Its low ESR and high-temperature capability make it a robust choice for demanding electronic designs.
The component is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited). It is intended for surface mount assembly using a gull wing termination style.
The capacitance is 10 µF and the voltage rating is 100V DC.
The dielectric material is metallized polyester.
The tolerance is ±10%.
It is a 14-SMD, Gull Wing package for surface mount mounting.
