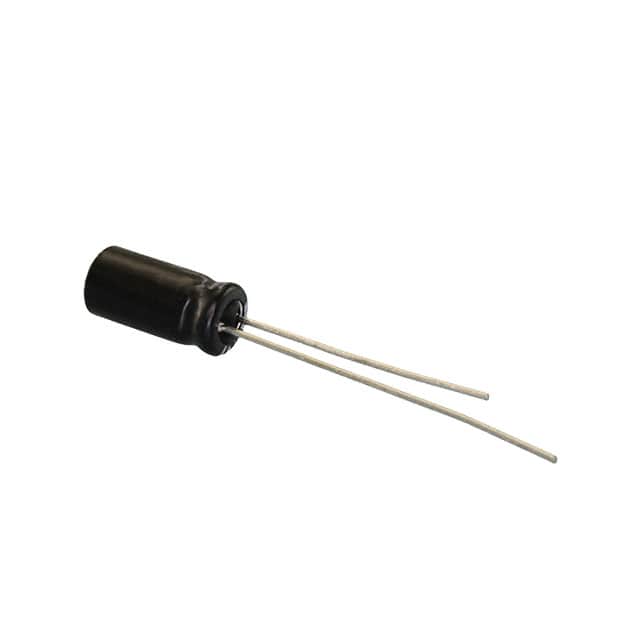

106CKR063M The Illinois Capacitor 106CKR063M is an aluminum electrolytic capacitor with a capacitance of 10µF and a voltage rating of 63V. It features a radial, can package.
Mfr Part #:

106CKR063M

Available from 1 distributors
Mfr Name: ILL CAP
ILL CAP
The Illinois Capacitor 106CKR063M is an aluminum electrolytic capacitor with a capacitance of 10µF and a voltage rating of 63V. It features a radial, can package.
✓ Total Stock: 1,910 pcs
$ Price Range: $0.02

106CKR063M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,910 pcs
On Request
1910 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

106CKR063M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
ESR (Equivalent Series Resistance)
Lead Spacing
Mounting Type
Operating Temperature
Polarization
SVHC Present
Tolerance
View Similar Products (0)

106CKR063M Description

Short technical summary and product information.

The Illinois Capacitor 106CKR063M is an aluminum electrolytic capacitor designed for general purpose applications. It offers a capacitance of 10µF with a tolerance of ±20% and a rated voltage of 63V.



Key electrical characteristics include an ESR of 16.579 Ohm at 120Hz, a low-frequency ripple current of 80mA at 120Hz, and a high-frequency ripple current of 184mA at 100kHz. The capacitor has a rated lifetime of 2000 hours at 85°C and operates within a temperature range of -40°C to 85°C.



This component is polarized and comes in a radial, can package. It is designed for through-hole mounting with a lead spacing of 2.00mm. The dimensions are 5.00mm in diameter and a seated height of 12.50mm.

106CKR063M Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: CKR
Canonical Name: Illinois Capacitor 106CKR063M Aluminum Electrolytic Capacitor 10µF 63V
Subcategory: Aluminum Electrolytic Capacitors

106CKR063M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

106CKR063M Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

106CKR063M Features

  • 10µF capacitance with ±20% tolerance.
  • Rated for 63V DC operation.
  • Operating temperature range of -40°C to 85°C.
  • Through-hole mounting, radial can package.
  • 2000 hours lifetime at 85°C.

106CKR063M Applications

  • Suitable for general purpose applications.
  • Designed for through-hole circuit integration.
  • Used in power supply filtering circuits.
  • Applicable in various electronic designs.

106CKR063M FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the 106CKR063M?

The capacitance is 10µF.

What is the voltage rating of the 106CKR063M?

The rated voltage is 63V.

What is the tolerance of the 106CKR063M?

The tolerance is ±20%.

What is the package type of the 106CKR063M?

The package is a radial, can through-hole type.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What is the lifetime rating of this capacitor?

The lifetime is 2000 hours at 85°C.

What is the ESR of the 106CKR063M?

The ESR is 16.579 Ohms at 120Hz.
