| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

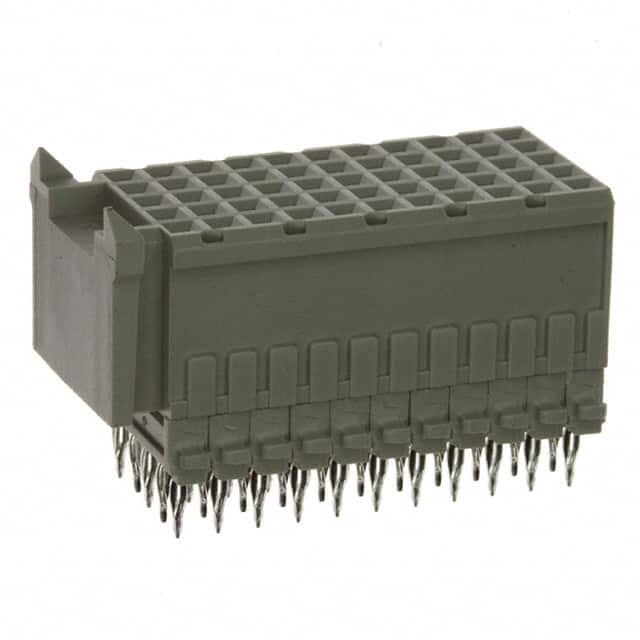

The TE Connectivity 106775-1 is a hard metric backplane connector designed for high-density interconnect applications. It is a receptacle with 55 female sockets arranged in 5 rows, all positions loaded. The connector features a 2mm pitch and utilizes press-fit termination for reliable solderless connection to the PCB through through-hole mounting.
This connector is part of the C 11 connector style family, suitable for backplane applications requiring robust and durable connections. The contacts are gold-plated with a thickness of 30µin (0.76µm), ensuring excellent conductivity and corrosion resistance. The connector is RoHS3 compliant (unverified) and has an MSL rating of 1 (unlimited floor life).
Typical applications include telecommunications, data communications, industrial control systems, and other high-reliability backplane systems. The press-fit termination eliminates the need for soldering, reducing assembly time and improving reliability.
Packaging and other mechanical specifications such as operating temperature range, current rating, and voltage rating are not available from the source data. The connector is through-hole mounted and requires no additional hardware for installation.
55 positions, all loaded.
2.00mm (0.079 inches).
Through-hole mounting with press-fit termination.
5 rows.
Gold finish with 30µin (0.76µm) thickness.
C 11 style.
Backplane applications.
