| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Termination |

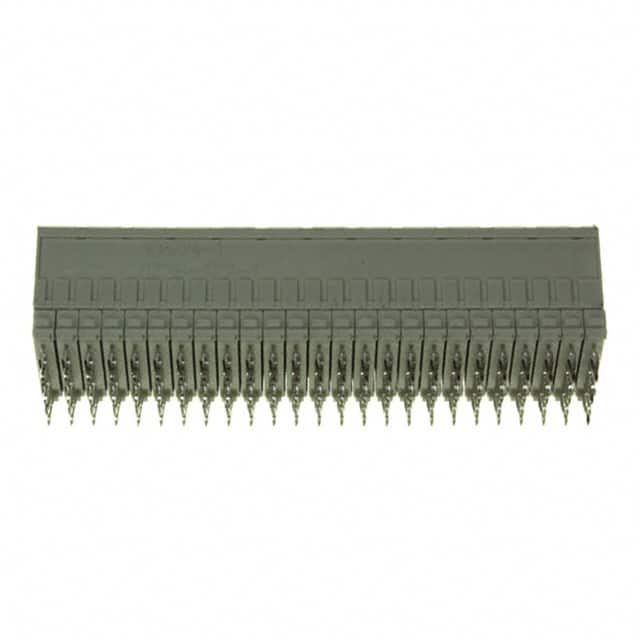

The TE Connectivity 106774-1 is a B 25 hard metric backplane connector designed for high-density interconnect applications. This receptacle has 125 positions arranged in 5 rows with a 2.00mm pitch, enabling compact and efficient board-to-board connections. The press-fit termination method allows for solderless through hole mounting, reducing assembly time and improving reliability. Contacts are gold-plated with a thickness of 30.0µin (0.76µm), ensuring excellent conductivity and corrosion resistance over multiple mating cycles.
This connector is suitable for backplane and midplane applications in telecommunications, data communications, and industrial systems. The 5-row configuration provides high pin density while maintaining signal integrity in high-speed digital environments. The B 25 series adheres to IEC 61076-4-101 standards for hard metric connectors, ensuring compatibility with industry-standard headers.
The through hole mounting provides robust mechanical stability, and the press-fit termination eliminates soldering defects. This connector is commonly used in switchgear, routers, servers, and other rack-mounted equipment where reliability and density are critical.
125 positions.
2.00mm.
Through hole.
Press-fit.
5 rows.
Gold, 30.0µin (0.76µm).
B 25.
