| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

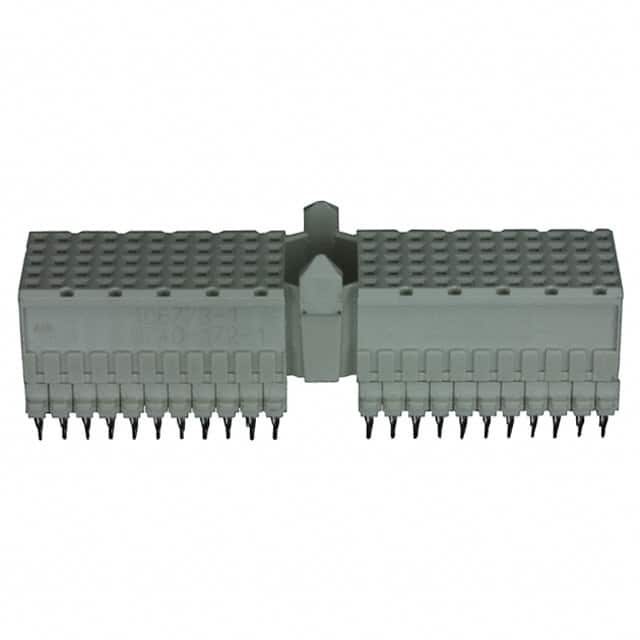

The TE Connectivity 106773-1 is a hard metric standard backplane connector designed for high-density backplane and midplane applications. It features a receptacle with 110 female socket positions arranged in 5 rows at a 2.00mm pitch. All positions are loaded, providing full signal or power routing capability.
The connector uses press-fit termination for reliable solderless installation into plated through-holes, reducing assembly time and improving mechanical retention. Contacts are finished with 30.0µin gold for corrosion resistance and reliable low-resistance connections. The through-hole mounting style ensures robust attachment to the PCB.
This connector is part of the A 22 connector style family and is suitable for use in telecommunications, data communications, and industrial electronic systems requiring high pin counts in a compact form factor.
Receptacle, Female Sockets.
110 positions, all loaded.
2.00mm.
Through Hole.
Press-Fit.
Gold, 30.0µin thickness.
A 22.
