| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
555 pcs
|
555 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
543 pcs
|
543 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Material | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Contact Material | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Storage Temperature | |
| Style | |
| Termination Style |

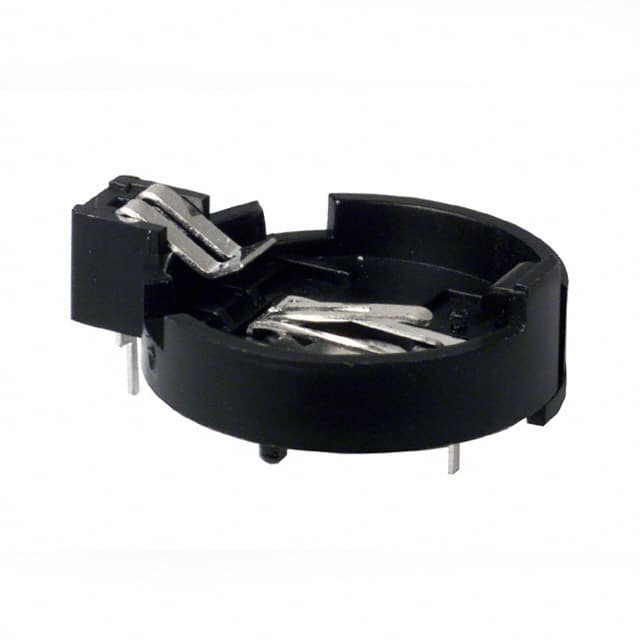

The Keystone Electronics 1066 is a battery holder designed for 20mm coin cell batteries. It accommodates a single cell and uses a through hole PCB mounting style with PC pin termination. The holder is an open frame design and accepts standard 2025 and 2032 battery series.
The holder contacts are made of phosphor bronze with tin plate, and the base material is Nylon with a UL94V-0 flammability rating. The height above the board is 9.14mm. The operating temperature range is -50°C to 145°C.
This holder is suitable for applications requiring a reliable coin cell battery connection on a printed circuit board. The open holder design allows for easy battery insertion and replacement.
It accepts 20mm coin cell batteries, specifically the 2025 and 2032 series.
The operating temperature range is -50°C to 145°C.
It uses PCB through hole mounting.
The termination style is PC Pin.
Yes, it is RoHS3 compliant.
The contacts are made of phosphor bronze with tin plate.
The height above board is 0.360 inches (9.14mm).
