| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Material | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Contact Material | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Reel Size | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Tape Width | |
| Termination Style | |
| UL Flammability Rating |

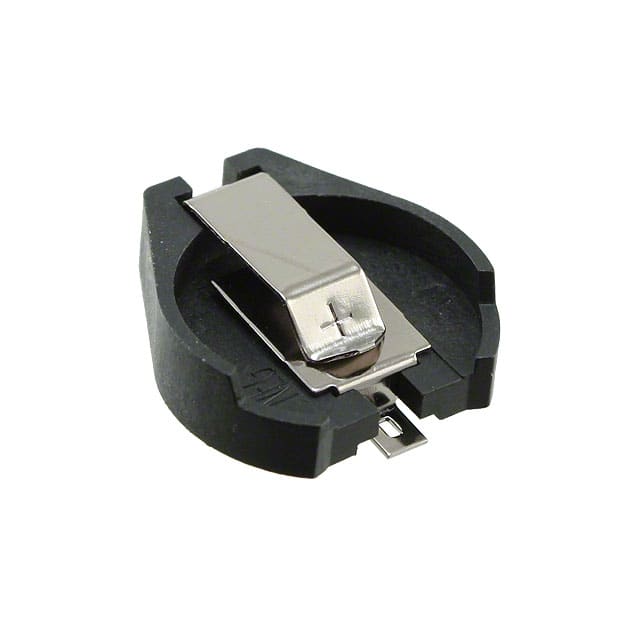

The Keystone Electronics 1061TR is a surface mount coin cell holder designed for 20mm diameter batteries. It accommodates one or two cells, supporting battery series such as 2012, 2016, 2020, and 2025. The holder features steel contacts with tin-nickel plating and a nylon 46 base rated UL 94V-0 for flame retardancy. The height above the board is 0.156 inches (3.96mm), enabling compact PCB designs. It operates over a wide temperature range of -50°C to 145°C. The component is packaged in tape and reel with 200 pieces per reel, suitable for automated assembly. Its raised mounting design allows components to be placed underneath, optimizing board space for applications like PC/104 systems.
-50°C to 145°C.
Yes, RoHS3 compliant.
20mm coin cells, supporting series 2012, 2016, 2020, and 2025.
1 or 2 cells.
PCB surface mount with SMD tabs.
0.156 inches (3.96mm).
Tape & Reel (TR) with 200 pieces per reel.
