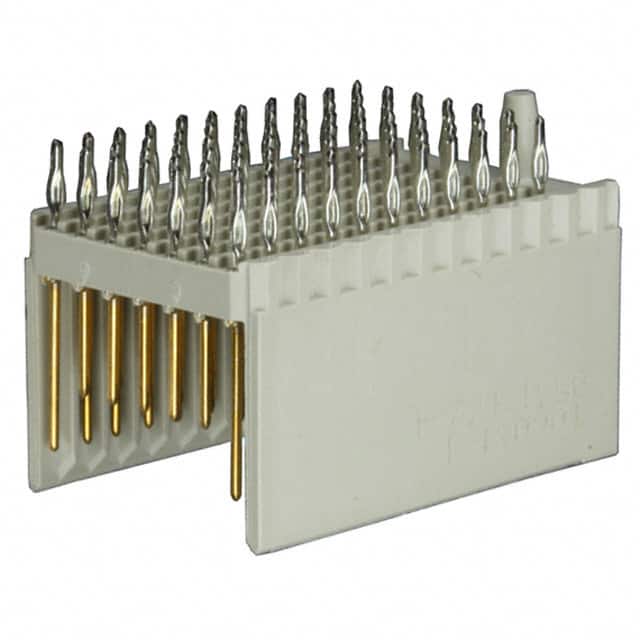

106081-1 TE Connectivity 106081-1 is a 77-position hard metric header connector with 2mm pitch, 5+2 rows, and press-fit through-hole termination. Designed for backplane applications with gold-plated contacts.
Mfr Part #:

106081-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 106081-1 is a 77-position hard metric header connector with 2mm pitch, 5+2 rows, and press-fit through-hole termination. Designed for backplane applications with gold-plated contacts.
✓ Total Stock: 91 pcs

106081-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
81 pcs
On Request
81 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

106081-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Connector Usage
Contact Finish
Contact Finish Thickness
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Termination
View Similar Products (0)

106081-1 Description

Short technical summary and product information.

The TE Connectivity 106081-1 is a hard metric header connector designed for high-density backplane applications. It features 77 positions arranged in a 5+2 row configuration with a 2.00mm pitch, providing robust signal and ground connections (55 signal + 22 ground). The connector uses through-hole press-fit termination for reliable solderless assembly.



Contact surfaces are plated with 30.0 microinches of gold, ensuring excellent conductivity and corrosion resistance. The connector style is C 11, and all positions are loaded for maximum pin count. The press-fit termination method is well-suited for automated assembly processes in telecom, networking, and industrial backplane systems.



The 106081-1 is mounted via through-hole and is intended for backplane usage, offering a compact yet dense interconnect solution. Its gold finish and press-fit design contribute to long-term reliability in high-vibration environments.

106081-1 Quick Information

Product Type: Backplane Connector
Canonical Name: TE Connectivity 106081-1 Hard Metric Connector, Header, Male Pins, 77 Positions (55+22 Ground), 2mm Pitch, Press-Fit
Subcategory: Backplane Connectors

106081-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

106081-1 Features

  • 77-position (55+22 ground) connector.
  • 2.00mm pitch with 5+2 rows.
  • Through-hole press-fit termination.
  • Gold-plated contacts for reliability.
  • Designed for backplane applications.

106081-1 Applications

  • Backplane interconnects in telecom equipment.
  • High-density signal and power transmission.
  • Press-fit assembly for reliable connections.

106081-1 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 106081-1 have?

77 positions total: 55 signal positions and 22 ground positions.

What is the connector pitch?

The pitch is 2.00mm (0.079 inches).

What mounting type does this connector use?

Through-hole mounting with press-fit termination.

What is the termination style?

Press-fit termination.

What contact finish is applied?

Gold, with a thickness of 30.0 microinches (0.76 micrometers).
