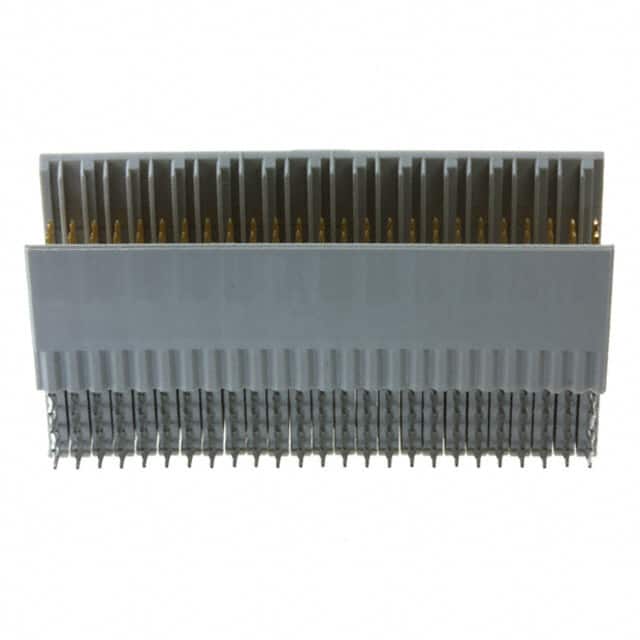

106014-1 TE Connectivity 106014-1 is a 125-position, 5-row hard metric header with 2.00mm pitch, press-fit termination, and gold-plated contacts.
Mfr Part #:

106014-1

Available from 2 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 106014-1 is a 125-position, 5-row hard metric header with 2.00mm pitch, press-fit termination, and gold-plated contacts.
✓ Total Stock: 126 pcs

106014-1 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
125 pcs
On Request
125 pcs On Request 1 On Request On Request N/A On Request On Request
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

106014-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Connector Usage
Contact Finish
Contact Finish Thickness
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Termination
Termination Style
View Similar Products (0)

106014-1 Description

Short technical summary and product information.

The TE Connectivity 106014-1 is a hard metric backplane connector designed for high-density board-to-board applications. It features a header with male pins in a B 25 connector style, offering 125 positions across 5 rows with a 2.00mm pitch. The connector is terminated using press-fit technology, providing a reliable solderless connection. Contacts are finished with 30.0µin (0.76µm) of gold for enhanced conductivity and corrosion resistance. The mounting type is board edge, through hole, right angle, making it suitable for compact backplane layouts. This connector is RoHS3 compliant and has an MSL of 1 (unlimited).

106014-1 Quick Information

Product Type: Backplane Connector
Series: Z-PACK
Canonical Name: TE Connectivity 106014-1 Hard Metric Header, Male Pins, 125 Position, 2.00mm Pitch, Press-Fit
Subcategory: Hard Metric, Standard

106014-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

106014-1 Features

  • 125 positions in 5 rows configuration.
  • 2.00mm pitch for high-density designs.
  • Press-fit termination for solderless assembly.
  • Gold-plated contacts for reliable conductivity.
  • Board edge, right-angle through hole mounting.

106014-1 Applications

  • Backplane interconnects in telecom equipment.
  • High-density server and storage systems.
  • Industrial control and automation backplanes.
  • Networking and data communication hardware.

106014-1 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the TE Connectivity 106014-1 have?

The connector has 125 positions, all loaded, arranged in 5 rows.

What is the pitch of the 106014-1 connector?

The pitch is 2.00mm (0.079 inches).

What termination method does the 106014-1 use?

The connector uses press-fit termination.

What is the contact finish on the 106014-1?

The contacts are finished with 30.0µin (0.76µm) of gold.

What mounting type does the 106014-1 support?

The connector mounts via board edge, through hole, right angle.
