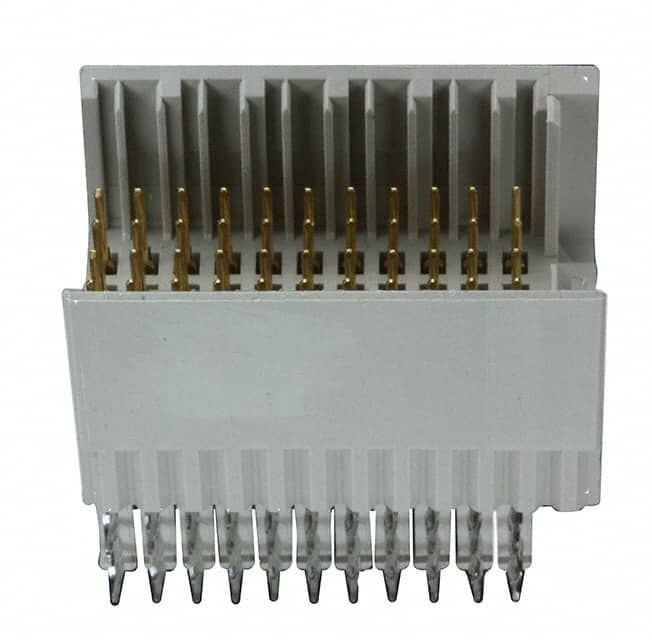

106012-1 TE Connectivity 106012-1 is a 55-position, 5-row hard metric header with 2mm pitch and press-fit termination. It features gold-plated contacts and a right-angle board edge mounting style.
Mfr Part #:

106012-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 106012-1 is a 55-position, 5-row hard metric header with 2mm pitch and press-fit termination. It features gold-plated contacts and a right-angle board edge mounting style.
✓ Total Stock: 65 pcs

106012-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
65 pcs
On Request
65 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

106012-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Connector Usage
Contact Finish
Contact Finish Thickness
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Termination
Termination Style
View Similar Products (0)

106012-1 Description

Short technical summary and product information.

The TE Connectivity 106012-1 is a hard metric standard backplane connector designed for high-density board-to-board applications. This header features 55 male pins arranged in 5 rows with a 2.00mm pitch, providing a compact interconnect solution for backplane systems.



The connector uses press-fit termination for reliable solderless connections and is mounted via board edge, through hole, right angle orientation. Contacts are finished with 30.0µin (0.76µm) gold plating for corrosion resistance and reliable signal integrity. The connector style is C 11, suitable for hard metric backplane architectures.

106012-1 Quick Information

Product Type: Backplane Connector
Series: C 11
Canonical Name: TE Connectivity 106012-1 Hard Metric Header, 55 Position, 2mm Pitch, Press-Fit
Subcategory: Hard Metric, Standard

106012-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

106012-1 Features

  • 55 positions in 5 rows for high density.
  • 2.00mm pitch for compact backplane designs.
  • Press-fit termination for solderless assembly.
  • Gold-plated contacts with 30.0µin thickness.
  • Right-angle board edge mounting style.

106012-1 Applications

  • Used in backplane interconnect systems.
  • Suitable for high-density board-to-board connections.
  • Ideal for telecom and networking equipment.
  • Applicable in industrial control backplanes.

106012-1 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the TE Connectivity 106012-1 have?

The connector has 55 positions.

What is the pitch of the 106012-1 connector?

The pitch is 2.00mm (0.079 inches).

What mounting type does the 106012-1 use?

It uses board edge, through hole, right angle mounting.

What termination method does the 106012-1 use?

The connector uses press-fit termination.

What is the contact finish on the 106012-1?

The contacts have a gold finish with 30.0µin (0.76µm) thickness.

How many rows does the 106012-1 connector have?

It has 5 rows.
