| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Rated Voltage | |
| Voltage Rating |

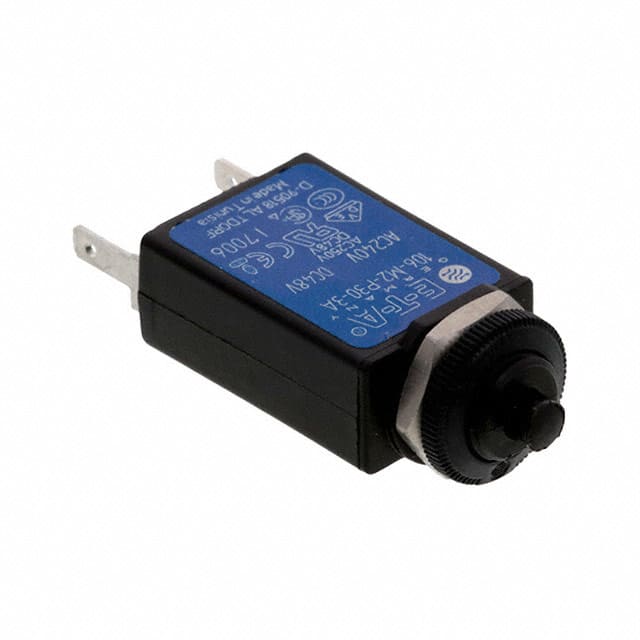

This E-T-A 106-M2-P30-3A is a single pole thermal circuit breaker in a miniaturized design, meeting EN 60934 (IEC 60934) standards. It offers reliable switching behavior with a positively trip-free snap action mechanism.
Key electrical specifications include a rated voltage of AC 240V and DC 48V, with a current rating of 3A. The current rating range spans from 0.05A to 10A. It has an interrupting capacity of 6x IN for both AC and DC.
Designed for panel mounting, this circuit breaker features a push-to-reset actuator. The operating temperature range is -20°C to 60°C. Typical applications include hand tools, domestic appliances, and overcurrent protection of PCB conductor paths.
Compliance includes RoHS3, MSL 1, and REACH Unaffected, though these are noted with low confidence due to lack of verification.
The rated voltage is AC 240V and DC 48V.
The current rating is 3A.
The operating temperature range is -20°C to 60°C.
It is a single pole circuit breaker.
It is a thermal circuit breaker.
The mounting type is Panel Mount.
