| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

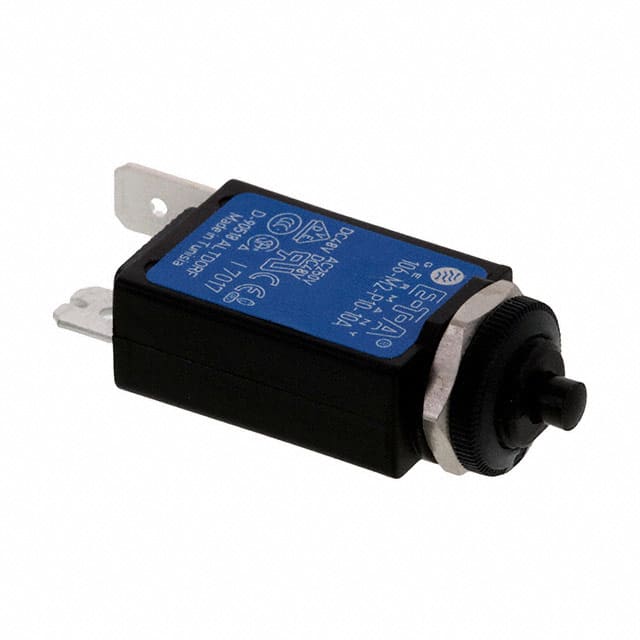

The E-T-A 106-M2-P10-10A is a miniaturized, single-pole thermal circuit breaker that ensures reliable switching behavior with a positively trip-free snap action mechanism. It meets the requirements of the circuit breaker standard EN 60934 (IEC 60934).
This circuit breaker is rated for 240 VAC and 48 VDC with a current rating of 10A. It is designed for panel mounting and features a push-to-reset actuator.
Typical applications for this thermal circuit breaker include hand tools, domestic appliances, overcurrent protection of PCB conductor paths, marine vehicles, and mobile homes. It offers an operating temperature range of -20 to 60 °C and an ingress protection rating of IP40 in the operating area and IP00 at the terminal area.
The device has undergone rigorous testing for vibration, shock resistance, corrosion, and humidity, adhering to relevant IEC standards. It also provides electrical protection with an interrupting capacity of 6x IN (AC) and 6x IN (DC), and a rupture capacity of 2000A (AC) or 200A (DC).
The circuit breaker is rated for 240VAC and 48VDC.
The ambient temperature range is -20 to 60°C.
The current rating is 10A.
It is a thermal circuit breaker.
It has a single pole.
The actuator is push-to-reset.
The operating area is IP40; the terminal area is IP00.
