| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Ambient Temperature | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Rated Voltage | |
| Voltage Rating |

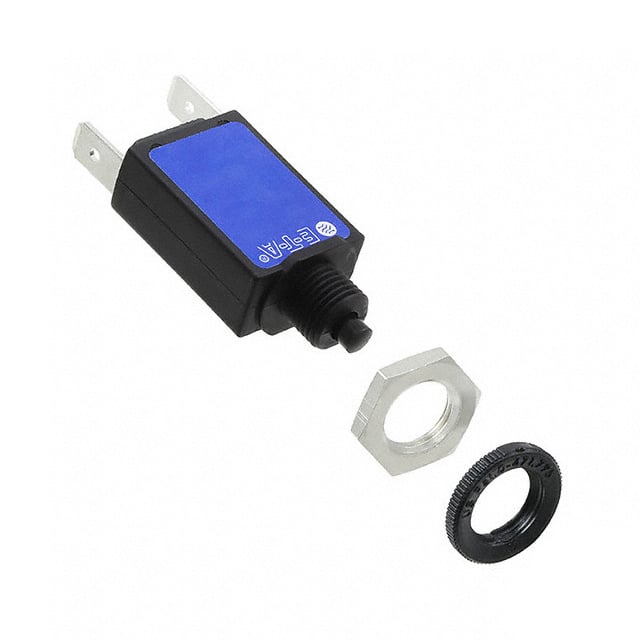

This E-T-A 106-M2-D91-P10-6A is a miniaturized, single-pole thermal circuit breaker designed for reliable switching behavior. It meets the requirements of the circuit breaker standard EN 60934 (IEC 60934).
Key electrical specifications include a rated voltage of 240V AC / 48V DC and a current rating of 6A. The breaker type is thermal, with a push-to-reset actuator and a panel mount configuration. It offers a current rating range from 0.05 to 10A.
Typical applications for this circuit breaker include hand tools, domestic appliances, overcurrent protection of PCB conductor paths, marine vehicles, and mobile homes. The device is designed for robust operation with a specified ambient temperature range of -20 to 60 °C.
Environmental and mechanical specifications include an operating area ingress protection of IP40 and a terminal area protection of IP00. It is also resistant to vibration, shock, and corrosion, meeting relevant IEC standards.
240V AC and 48V DC.
-20 to 60°C.
6A, with an adjustable range from 0.05 to 10A.
Thermal circuit breaker.
1 pole.
Push-to-reset.
Panel mount.
