| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | 1036 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| ESR (Equivalent Series Resistance) | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

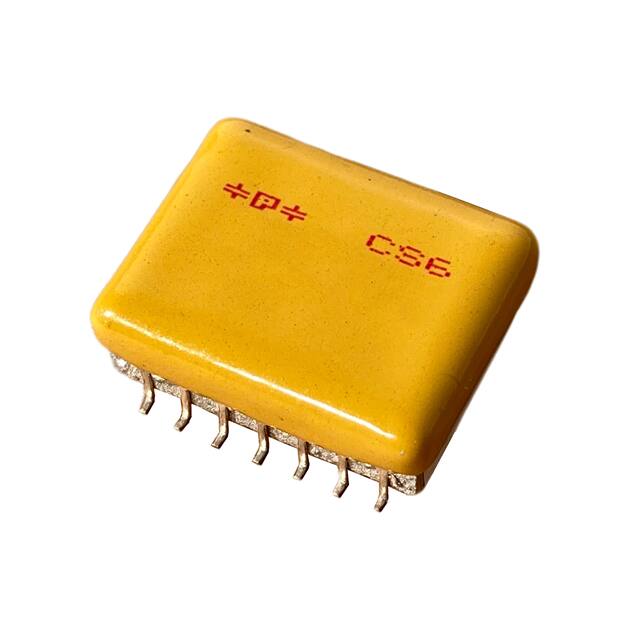

This is a metallized polyester film capacitor from ITW Paktron, part number 105K400CS6G. It has a capacitance of 1 µF with a voltage rating of 400V and a tolerance of ±10%. The capacitor features low equivalent series resistance (ESR) of 8 mΩ and is designed for high temperature operation.
The dielectric material is metallized polyester, making it suitable for EMI and RFI suppression as well as high pulse and high DV/DT applications. The operating temperature range is -55°C to 125°C.
The component is surface mount packaged in a 14-SMD gull wing case with dimensions 22.40mm x 17.80mm x 8.10mm. The lead spacing is 15.00mm. Termination style is gull wing.
1 µF.
400V.
Metallized polyester.
±10%.
14-SMD, Gull Wing.
8 mΩ.
-55°C to 125°C.
