| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
920 pcs
|
920 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
920 pcs
|
920 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Case Code | |
| Dielectric Material | |
| ESR (Equivalent Series Resistance) | |
| Features | |
| Height | |
| Lead Diameter | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width | |
| dv/dt |

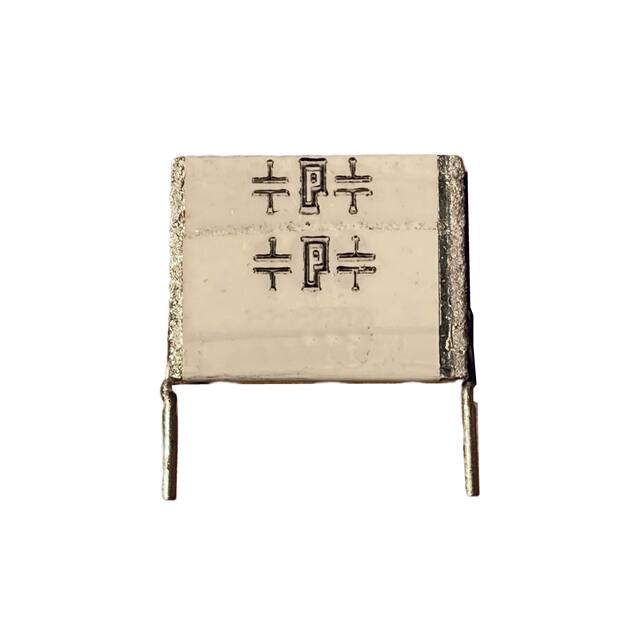

The ITW Paktron 105K250RA6-FA is a metallized polyester (PET) film capacitor from the Angstor RA series. It offers a capacitance of 1 µF with a voltage rating of 250 VDC (160 VAC) and a tolerance of ±10%.
This capacitor features a low ESR of 8 mΩ and a high dv/dt capability of 35 V/µs, making it suitable for high pulse and snubber applications. The self-healing dielectric design ensures reliable operation.
The component is housed in a radial through-hole package with a case code of RA6. Its dimensions are 16.50 mm x 6.10 mm x 8.60 mm, with a lead spacing of 15.00 mm and lead diameter of 0.8 mm. It operates over a temperature range of -55°C to +125°C.
The capacitance is 1 µF with a voltage rating of 250 VDC (160 VAC).
The tolerance is ±10%.
The dielectric is metallized polyester (PET).
It is a radial through-hole package with a lead spacing of 15.00 mm.
The operating temperature range is -55°C to +125°C.
