| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Mounting Type | |
| Style |

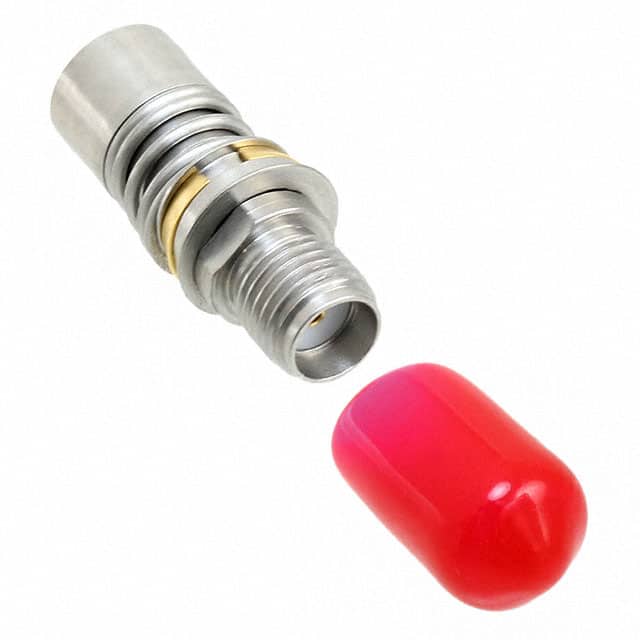

The 1059724-1 from TE Connectivity is a between-series coaxial RF adapter designed to connect an SMA jack (female socket) to an OSP jack (female socket). This adapter operates at a characteristic impedance of 50 Ohm and supports frequencies up to 18 GHz, making it suitable for high-frequency signal routing in test and measurement, telecommunications, and microwave systems.
The adapter features a straight body style with a panel mount snap-in installation. The interface uses snap-on fastening on one end and threaded on the other, ensuring secure connections. The center contacts are gold-plated for reliable conductivity and corrosion resistance.
This adapter falls under the RoHS3 and REACH compliance (unverified), and has an MSL level of 1. It is intended for use where a conversion between SMA and OSP interfaces is required in a panel-mounted application.
50 Ohm.
Up to 18 GHz.
SMA jack to OSP jack, between series, straight.
Panel mount with snap-in.
Snap-on on one end, threaded on the other.
Female to female.
RoHS3 Compliant (unverified).
