| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| SVHC Present | |
| Style | |
| Tape & Reel |

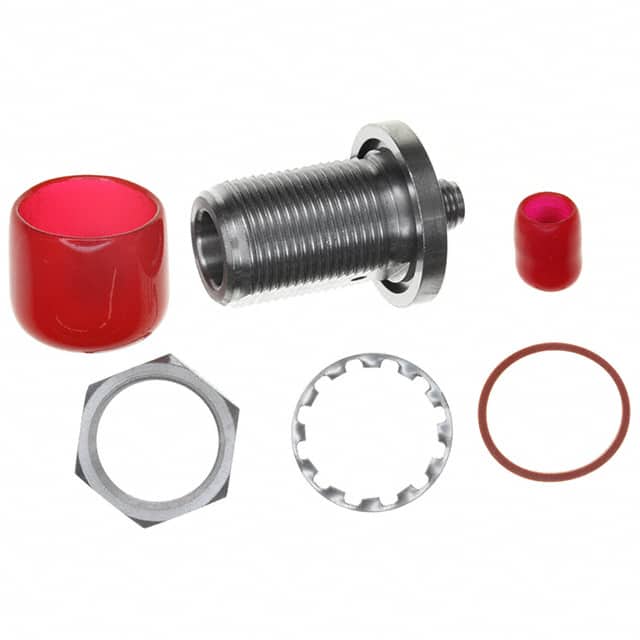

The TE Connectivity 1058675-1 is a between-series coaxial RF adapter designed to connect SMA Jack to N Jack interfaces. This adapter features a straight female-to-female configuration with gold-plated center contacts for reliable signal integrity. It has a characteristic impedance of 50Ω and supports frequencies up to 18 GHz, making it suitable for high-frequency applications.
The adapter utilizes a panel mount with bulkhead mounting feature and threaded fastening on both ends for secure installation. The body is built for durability and consistent performance in RF and microwave systems. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited), though these compliance claims are unverified.
Typical applications include RF test and measurement setups, telecommunications infrastructure, aerospace and defense systems, and other environments requiring high-frequency signal routing between SMA and N series connectors. The gold plating on center contacts minimizes oxidation and ensures low contact resistance.
50 Ω.
18 GHz.
Between-series adapter from SMA Jack to N Jack, female to female.
Panel mount with bulkhead feature.
Threaded on both ends.
Yes, RoHS3 compliant.
Gold.
