| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Style |

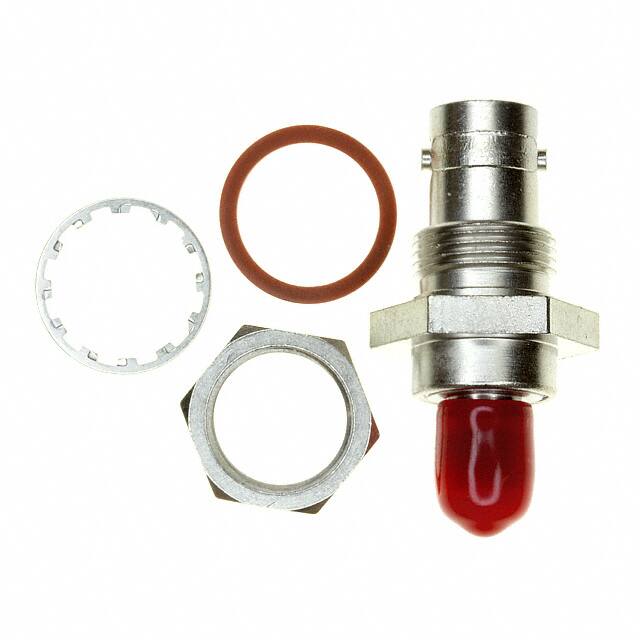

The TE Connectivity 1058117-1 is a between-series coaxial adapter converting a BNC Jack (female socket) to an SMA Jack (female socket). It features a straight body style with panel mount bulkhead design, using bayonet lock on the BNC side and threaded fastening on the SMA side. The adapter is rated for 50 Ohm impedance and supports frequencies up to 4 GHz. Center contacts are gold-plated for reliable RF performance.
This adapter is suitable for applications requiring interconnection between BNC and SMA interfaces in RF test equipment, communication systems, and antenna distribution. The bulkhead mounting allows secure panel installation.
Note: This part has been discontinued by the manufacturer as per product change notification P-21-021908. Last order date was 14-JAN-2022 and last ship date 31-JUL-2022.
50 Ohm.
4 GHz.
Between series BNC Jack to SMA Jack, female to female, straight.
Panel mount with bulkhead feature.
Bayonet lock on BNC side, threaded on SMA side.
Gold.
RoHS3 Compliant (unverified).
