| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| SVHC Present | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

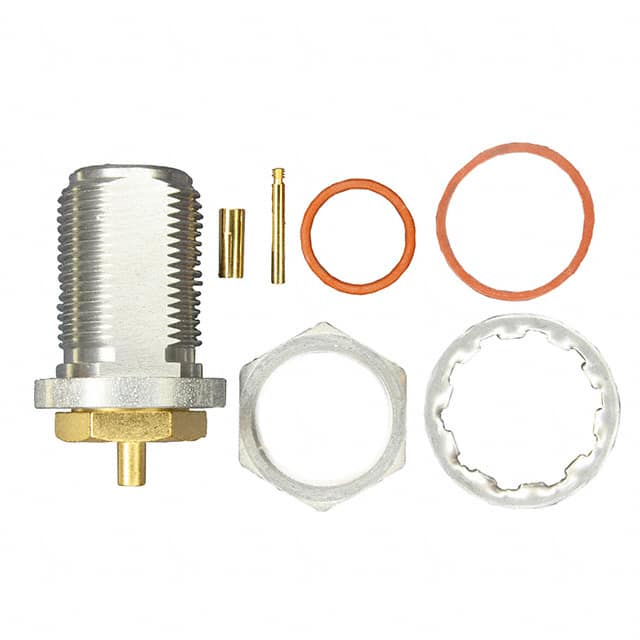

The 1057165-1 is an N Type coaxial connector assembly from TE Connectivity, designed as a jack with a female socket contact. It is rated for 50 Ohm impedance and supports frequencies up to 18 GHz, making it suitable for RF applications.
The connector features a threaded fastening type and a panel mount with bulkhead front side nut mounting feature. Both the contact and shield are terminated via solder, ensuring reliable electrical connections. The center contact is made of brass, and the housing has a silver color.
This connector is designed for use with RG-405 (.085" semi rigid) cable. It is a single-port, 1-port device.
The impedance is 50 Ohm.
The maximum frequency is 18 GHz.
It uses panel mount with bulkhead front side nut mounting feature.
It is designed for RG-405 (.085" semi rigid) cable.
Both contact termination and shield termination are solder.
