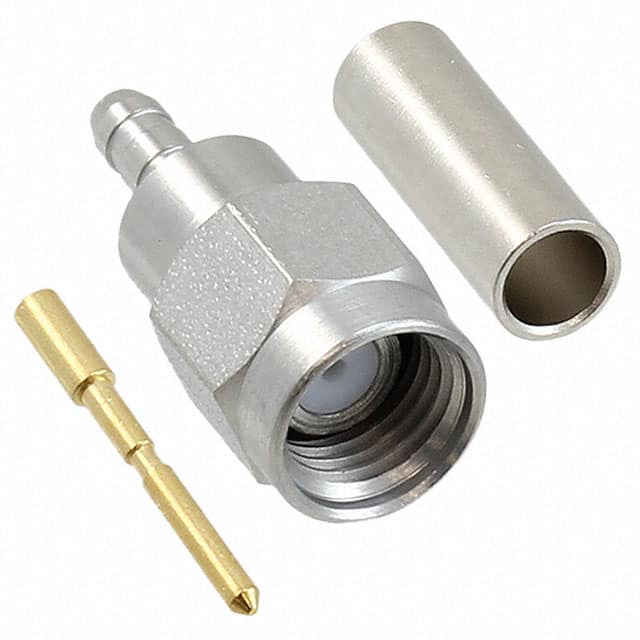

1056436-1 SMA plug connector with male pin, 50 Ohm impedance, free hanging mounting, solder contact termination, and crimp shield. Designed for RD-316 double braid cable.
Mfr Part #:

1056436-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
SMA plug connector with male pin, 50 Ohm impedance, free hanging mounting, solder contact termination, and crimp shield. Designed for RD-316 double braid cable.
✓ Total Stock: 236 pcs

1056436-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
236 pcs
On Request
236 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1056436-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Lead Style
Mounting Type
Number of Ports
Shield Termination
View Similar Products (0)

1056436-1 Description

Short technical summary and product information.

This is a TE Connectivity SMA plug connector (male pin) designed for free hanging (in-line) mounting. It features a threaded fastening type and operates up to 12.4 GHz with 50 Ohm impedance.



The contact termination is solder, and the shield termination is crimp. The center contact material is brass, and the housing color is silver. It is designed for use with RD-316 double braid cable.



This connector is suitable for RF applications requiring reliable coaxial connections. The single port design ensures straightforward integration.

1056436-1 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: SMA Plug, Male Pin, Free Hanging, 50 Ohm, Solder Contact, Crimp Shield, for RD-316 Double Braid Cable
Subcategory: Straight Plug

1056436-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1056436-1 Features

  • SMA plug with male pin connector.
  • 50 Ohm impedance for RF applications.
  • Operates up to 12.4 GHz frequency.
  • Threaded fastening for secure connection.
  • Solder contact and crimp shield termination.

1056436-1 Applications

  • Ideal for RF signal transmission systems.
  • Used in telecommunications and test equipment.
  • Suitable for antenna and cable assemblies.
  • Common in wireless infrastructure applications.

1056436-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector style?

SMA

What is the impedance?

50 Ohm

What is the maximum frequency?

12.4 GHz

What is the mounting type?

Free Hanging (In-Line)

What is the contact termination?

Solder

What cable group is this connector designed for?

RD-316 Double Braid

What is the fastening type?
