| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

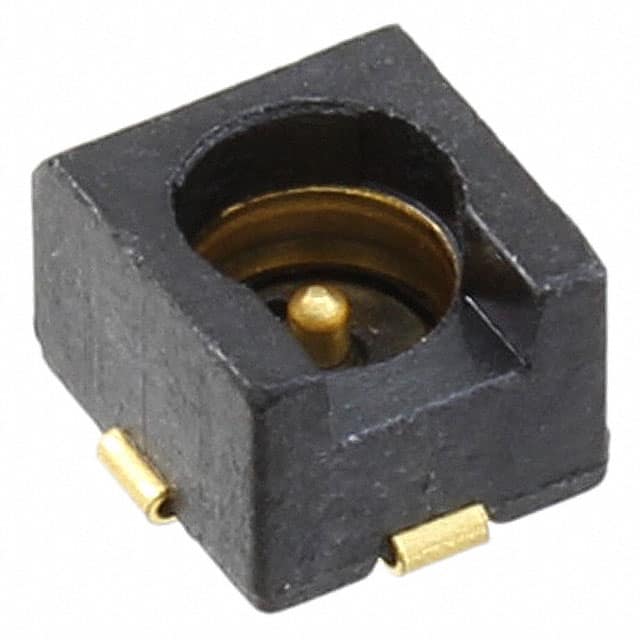

The 1055690-1 from TE Connectivity is an OSMT-style RF coaxial connector receptacle. It features a male pin center contact and is designed for surface mount soldering with a snap-on fastening mechanism.
Electrical specifications include a characteristic impedance of 50 Ohms and a maximum operating frequency of 6 GHz. The center contact is made of copper alloy, ensuring reliable conductivity and signal integrity.
Mechanical details: the connector is surface mount with contact termination using solder and microstrip, and shield termination via solder. The single-port design is suitable for compact RF module integration.
No datasheet is available for this part; compliance data (RoHS, REACH, MSL) is unverified and should be independently confirmed.
| Qty | Low | High |
|---|---|---|
| 2,500+ | $5.92 | $5.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Surface Mount.
50 Ohms.
6 GHz.
OSMT.
Snap-On.
Copper Alloy.
1 port.
