| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,573 pcs
|
7573 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| USB Standard | |
| Voltage |

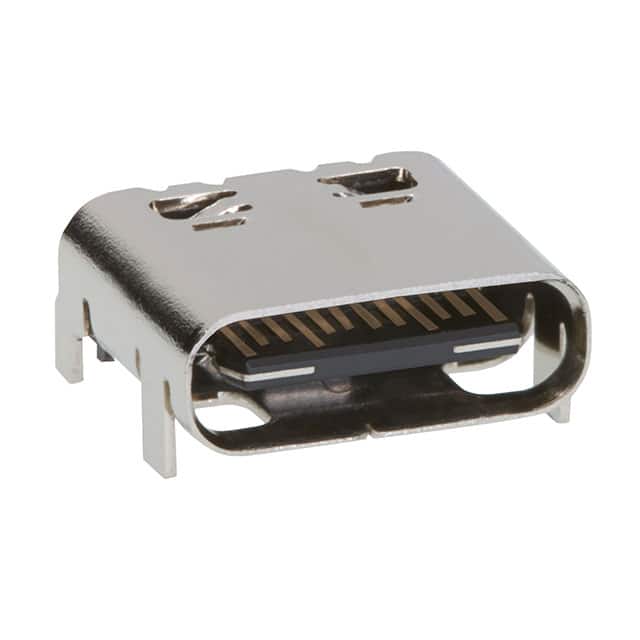

The Molex 1054500101 is a USB-C (USB TYPE-C) receptacle connector designed for high-speed data and power delivery applications. It supports USB 3.2 Gen 2 (also known as USB 3.1 Gen 2 and Superspeed+) for data transfer rates up to 10 Gbps. The connector features 24 contacts and is rated for a current of up to 5A, with a voltage rating of 30V AC/DC.
This receptacle is offered in a surface mount, right angle orientation (horizontal mounting) and also supports through-hole mounting options. It is shielded for EMI protection and rated for 10,000 mating cycles, ensuring durability in repeated use applications. The operating temperature range is -30°C to 85°C, making it suitable for a wide variety of environments.
The connector is terminated via solder and is available in tape and reel packaging. It is commonly used in consumer electronics, data communication devices, and industrial equipment requiring a robust USB Type-C interface.
USB-C (USB TYPE-C) receptacle.
0.25A, 1A, and 5A.
USB 3.2 Gen 2 (also known as USB 3.1 Gen 2, Superspeed+).
24 contacts.
Surface mount, right angle; through hole.
-30°C to 85°C.
10,000 cycles.
