| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

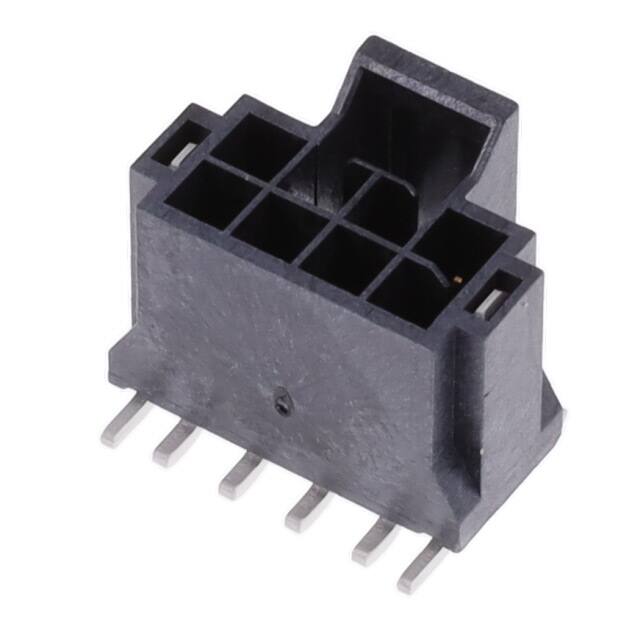

The Molex 1054291208 is a rectangular header connector designed for board-to-cable/wire applications. It provides 8 positions in a 2-row configuration with a 2.50mm pitch and row spacing, making it suitable for compact wiring solutions. The connector features a shrouded 4-wall housing with a latch holder fastening mechanism for secure mating.
Constructed with a black liquid crystal polymer (LCP) insulator, the header offers a UL94 V-0 flammability rating for reliable performance in demanding environments. The contacts are made of brass with a tin plating finish of 15.0µin (0.38µm), ensuring good conductivity and corrosion resistance.
Electrical ratings include a current rating of 4A and a voltage rating of 250VAC, with an operating temperature range of -40°C to 115°C. The header is surface mount (SMT) with solder termination and includes pick-and-place and solder retention features for automated assembly.
Ideal for use in consumer electronics, industrial controls, and other compact systems, this connector provides a reliable interconnection between a PCB and cables.
8 positions in 2 rows.
2.50mm (0.098")
4A
250VAC
Surface Mount with Solder termination.
-40°C to 115°C
Latch Holder
