| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

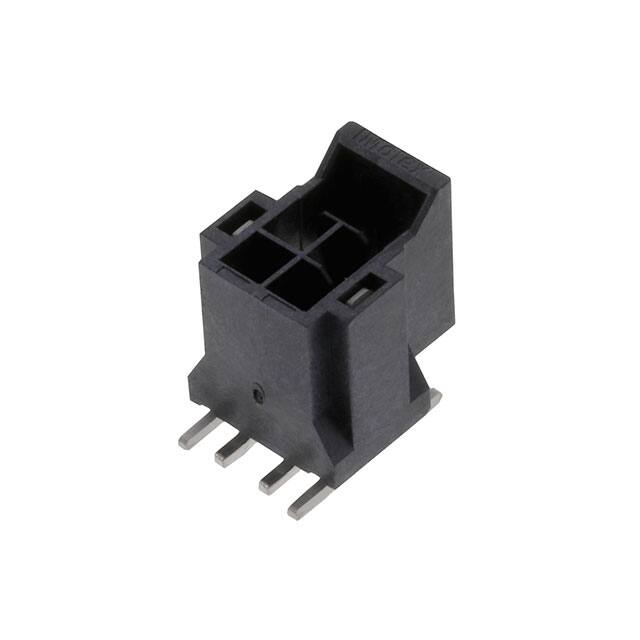

The Molex 1054291104 is a 4-position 2.50mm pitch surface mount shrouded header (male pin) designed for board-to-cable/wire applications. The 4-wall shrouding provides robust mating alignment and protection for the male pins. A latch holder fastening type ensures secure retention between header and mating connector. The header uses a liquid crystal polymer (LCP) insulator rated UL94 V-0 for flammability and is black in color. The contacts are brass with a 30µin tin finish suitable for soldering.
The component is surface mount (SMT) compatible and includes pick and place and solder retention features for automated assembly. The insulation height is 9.70mm. The header is rated for 4A current and 250VAC voltage. It operates over a temperature range of -40°C to 105°C making it suitable for a variety of commercial and industrial environments. This header is RoHS3 and REACH compliant (unverified status from source data).
This header has 4 positions (all loaded).
The pitch is 2.50mm (0.098 inches).
The current rating is 4A.
The voltage rating is 250VAC.
This header is surface mount (SMT).
Operating temperature is -40°C to 105°C.
Insulation is Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
