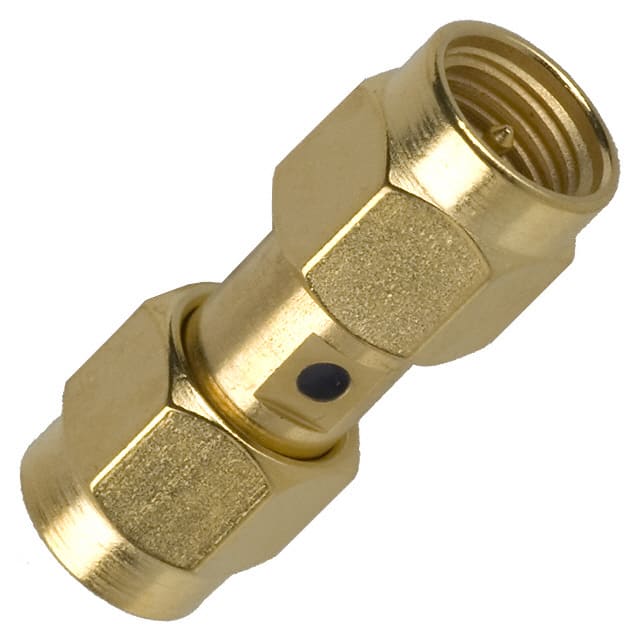

1053634-1 OSM (SMA) plug to plug adapter with 50 Ohm impedance and 18 GHz maximum frequency. Straight body design with male to male center contacts, gold plated, threaded coupling.
Mfr Part #:

1053634-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
OSM (SMA) plug to plug adapter with 50 Ohm impedance and 18 GHz maximum frequency. Straight body design with male to male center contacts, gold plated, threaded coupling.
✓ Total Stock: 122 pcs
$ Price Range: $19.32

1053634-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
122 pcs
On Request
122 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1053634-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adapter Series
Adapter Type
Center Contact Plating
Center Gender
Conversion Type
Convert From (Adapter End)
Convert To (Adapter End)
Fastening Type
Frequency
Impedance
Mounting Type
Style
View Similar Products (0)

1053634-1 Description

Short technical summary and product information.

This TE Connectivity 1053634-1 is a coaxial adapter designed to connect two SMA (OSM) male plugs directly. It features a straight body, 50 Ohm impedance, and is rated for frequencies up to 18 GHz. The adapter uses threaded coupling on both ends for secure connections. Center contacts are gold plated for reliable signal integrity. The mounting type is free hanging (in-line), suitable for cable-to-cable connections. Typical applications include RF test equipment, telecommunications, and wireless infrastructure where high-frequency signal routing is required.

1053634-1 Quick Information

Product Type: Coaxial Connector (RF) Adapter
Canonical Name: OSM Plug to Plug Adapter, 50 Ohm, 18 GHz, Straight, Male to Male, Free Hanging
Subcategory: RF Adapters

1053634-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1053634-1 Estimated Pricing

Qty Low High
500+ $19.32 $19.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

1053634-1 Features

  • 50 Ohm impedance for RF applications.
  • 18 GHz maximum frequency rating.
  • Straight body with male to male pins.
  • Gold plated center contacts.
  • Threaded coupling on both ends.

1053634-1 Applications

  • Used in RF test and measurement setups.
  • Connects SMA-equipped cables in wireless systems.
  • Ideal for telecommunication infrastructure.
  • Suitable for high-frequency signal routing.

1053634-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of this adapter?

50 Ohms.

What is the maximum frequency?

18 GHz.

What is the mounting type?

Free hanging (in-line).

What is the connector type on each end?

SMA (OSM) plug, male pin.

Is this adapter straight or right angle?

Straight.

What is the center contact plating?

Gold.

What is the fastening type?

Threaded on both ends.
