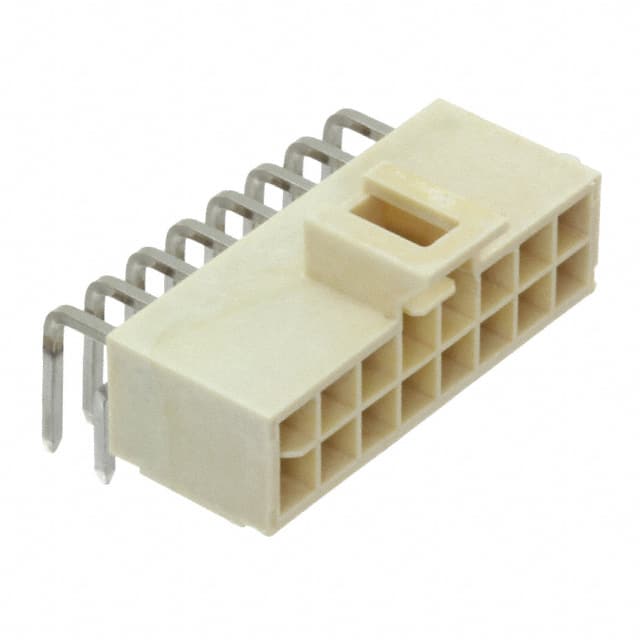

The Molex 1053142316 is a 16-position header from the Nano-Fit power connector family. This shrouded 4-wall header features a 2.50mm pitch and 2 rows, with all positions loaded. It is rated for 8.0A maximum current and 250V maximum voltage, with a contact resistance of 10mOhm max and dielectric withstanding voltage of 1500V. The operating temperature range is -40°C to 105°C.
Designed for board-to-cable/wire applications, this right-angle through-hole header includes a latch holder for secure mating and a board guide feature. The contacts are made of brass with tin plating (note: gold plating with 30µin thickness is also indicated in the datasheet, suggesting a possible plating option). The insulation is liquid crystal polymer (LCP) in natural color, with an insulation height of 6.28mm and contact length of 3.50mm.
This connector is suitable for power distribution in consumer appliances, automotive interior lighting, telecom/networking equipment, and industrial automation. It offers low mating force (3N typical), terminal position assurance (TPA) compatibility, and is available in both tin and gold plating options for different durability and cost requirements. The part is RoHS compliant, halogen free, and glow wire capable.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.43 | $7.43 |
| 10+ | $7.26 | $7.26 |
| 25+ | $6.86 | $6.86 |
| 50+ | $5.43 | $5.43 |
| 100+ | $5.17 | $5.17 |
| 500+ | $4.78 | $4.78 |
| 1,000+ | $4.45 | $4.45 |
| 2,500+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 16 positions, all loaded.
The pitch is 2.50mm (0.098 inches).
The maximum current rating is 8.0A per contact.
The maximum voltage rating is 250V.
It is a through-hole, right-angle mounting header with solder termination.
The operating temperature range is -40°C to 105°C.
The contacts are made of brass. The finish is listed as tin, but the datasheet indicates gold plating with 30µin thickness, suggesting both options are available.
