| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
119 pcs
|
119 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

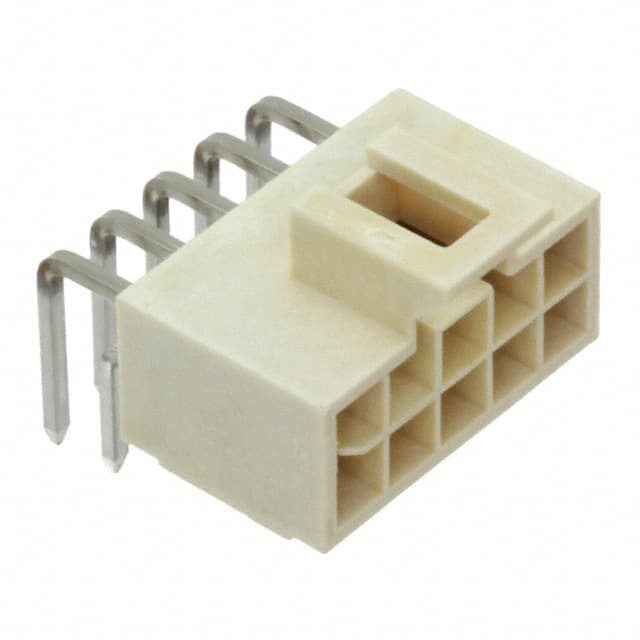

The Molex 1053142210 is a 10-position, 2-row header designed for board-to-cable/wire applications. It features a 2.50mm pitch and row spacing, with all positions loaded. The connector uses a through-hole, right-angle mounting style with solder termination.
The header is shrouded with a 4-wall design and includes a latch holder for secure mating. A board guide feature aids in alignment during assembly. Contacts are male pins made of brass with a tin finish (0.38µm thickness) and square contact shape. The insulation is liquid crystal polymer (LCP) in natural color, with an insulation height of 6.28mm.
Electrical rating is 250V, and the operating temperature range is -40°C to 105°C. Contact length is 3.50mm. This header is suitable for general-purpose interconnects in industrial, consumer, and other moderate environments.
10 positions in 2 rows, all loaded.
2.50mm (0.098").
250V.
Through hole, right angle.
-40°C to 105°C.
Tin, 0.38µm thickness.
Yes, shrouded - 4 wall with latch holder.
