| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
128 pcs
|
128 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mating Cycles | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Unmating Force | |
| Voltage Rating |

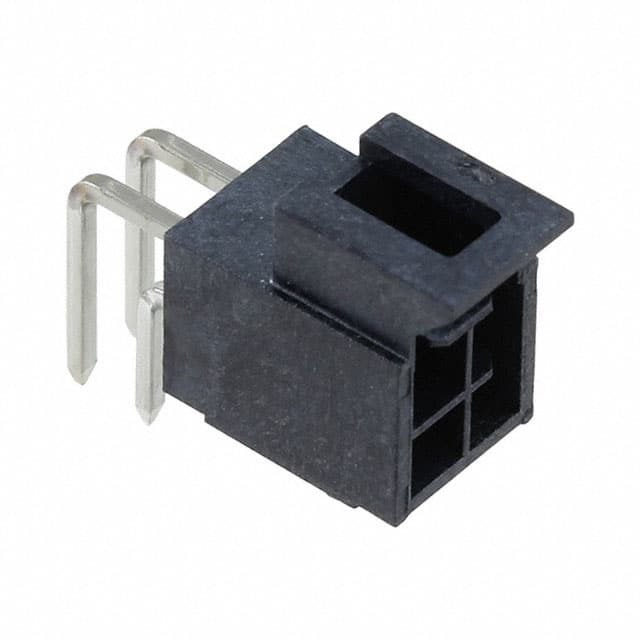

The Molex 1053141204 is a 4-position male pin header from the Nano-Fit Power Connector family. It features a 2.50mm pitch, 2 rows, and a through hole right angle termination style. The header is fully shrouded with a 4-wall design and includes a latch holder for secure mating with compatible receptacles.
Electrical ratings include a current rating of 8.0A and a voltage rating of 250V. The contacts are made of brass with a tin finish (0.38µm thickness) and the housing is black Liquid Crystal Polymer (LCP). The operating temperature range is -40°C to 105°C. Mechanical features include a board guide, a mating force of 3N, and a durability of 20 mating cycles for tin plating.
This connector is suitable for board-to-cable/wire applications and is designed for use in consumer appliances, telecommunications, lighting, and industrial equipment. It is RoHS3 compliant and halogen-free.
The pitch is 2.50mm (0.098 inches).
The current rating is 8.0A per contact.
The voltage rating is 250V.
Through hole, right angle mounting.
-40°C to 105°C.
Yes, it is RoHS3 compliant and halogen-free.
