| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
214 pcs
|
214 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Cycles | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Glow-Wire Capable | |
| Halogen Free | |
| Insertion Force to PCB | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Mating Force | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Tape and Reel | |
| Termination | |
| Termination Style | |
| Unmating Force | |
| Voltage Rating |

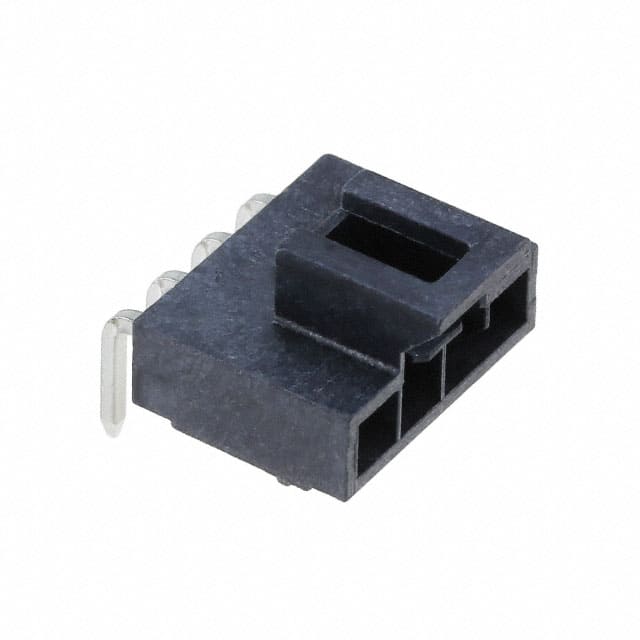

The Molex 1053131204 is a 4-position header from the Nano-Fit power connector series. It features a 2.50mm pitch and a through hole right angle mounting style with solder termination. The header is fully shrouded with a 4-wall design, providing terminal protection and alignment. Contacts are made of high-conductivity copper with a tin plating of 15.0µin (0.38µm). The insulation is black liquid crystal polymer (LCP) with a height of 3.78mm. Electrical ratings include 8.0A current, 250V voltage, contact resistance of 10 milliohms, dielectric withstanding voltage of 1500V, and insulation resistance of 1000 megohms. Mechanical features include a latch holder for secure mating, a board guide for alignment, and specified insertion and mating forces. The operating temperature range is -40°C to 105°C. This connector is designed for board-to-cable/wire applications and is RoHS3 compliant, halogen free, and glow wire capable.
It has 4 positions.
The pitch is 2.50mm.
The current rating is 8.0A.
The voltage rating is 250V.
It is through hole, right angle mounting.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant.
