| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA File No | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Cycles | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Glow-Wire Capable | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| UL File No | |
| Unmating Force | |
| Voltage Rating |

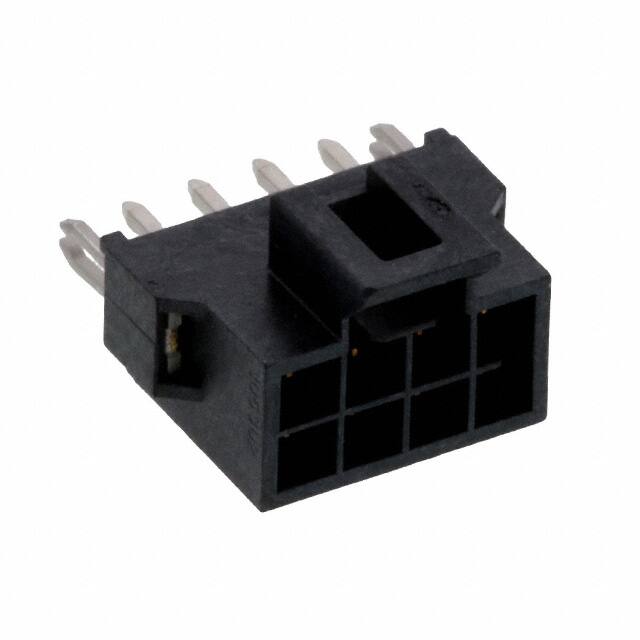

The Molex 1053121308 is a Nano-Fit power connector header designed for board-to-cable/wire applications. It features 8 positions arranged in 2 rows with a 2.50mm pitch and row spacing. The header is shrouded with a 4-wall design and includes a latch holder for secure mating and a board lock for reliable mounting.
Electrical ratings include 8.0A current capacity and 250V voltage rating. The connector meets a dielectric withstanding voltage of 1500V and has an insulation resistance of 1000 Megohms. Contact resistance is rated at 10 milliohms change over life. The operating temperature range is -40°C to 105°C.
Mechanical specifications include a mating force of 3N and unmating force of 3N, with contact retention to housing of 27N. The contacts are made of high-conductivity copper (per datasheet) with tin plating, though the plating thickness of 30µin is typically associated with gold. The insulator is black Liquid Crystal Polymer (LCP).
This connector is suitable for consumer appliances, telecom/networking equipment, automotive interior lighting, and industrial applications. It is RoHS compliant, halogen-free, and glow wire capable. The part is UL recognized (E29179) and CSA certified (LR19980).
8 positions.
2.5mm (0.098 inches).
8.0A.
250V.
Through hole.
-40°C to 105°C.
Yes, verified from datasheet.
