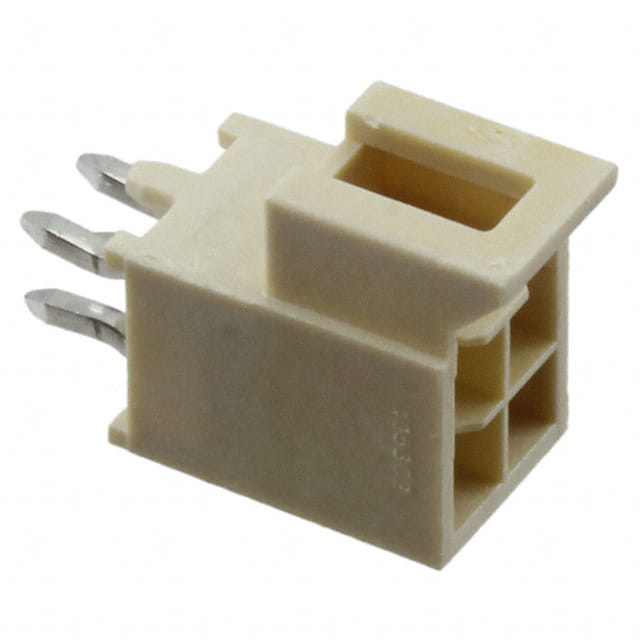

The Molex 1053102204 is a 4-position, 2-row header from the Nano-Fit power connector series. It features a fully shrouded 4-wall housing with a positive-latch holder, ensuring secure mating in board-to-cable/wire applications. The header uses through-hole mounting with kinked solder pins for reliable PCB attachment.
Electrical ratings include 8.0A current per contact and 250V voltage, with a contact resistance of 10mΩ. The high-conductivity copper contacts are tin-plated (0.38µm) and designed with 4 points of contact for long-term reliability. The insulator is made of liquid crystal polymer (LCP) in natural color, withstanding operating temperatures from -40°C to 105°C. The connector supports up to 20 mating cycles with tin plating.
Typical applications include consumer home appliances (washers, dryers, refrigerators), telecommunications networking servers and hubs, automotive interior lighting, and industrial automation equipment. The Nano-Fit series offers keying options and terminal position assurance (TPA) retainers to prevent mismating and terminal backout.
4 positions.
2.50mm (0.098 inches).
8.0A per contact.
250V.
Through hole with kinked solder pins.
-40°C to 105°C.
20 cycles for tin-plated contacts.
