| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
138 pcs
|
138 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Glow-Wire Capable | |
| Halogen Free | |
| Housing Material | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Mating Cycles (Gold) | |
| Mating Cycles (Tin) | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type (Header) | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Unmating Force | |
| Voltage Rating |

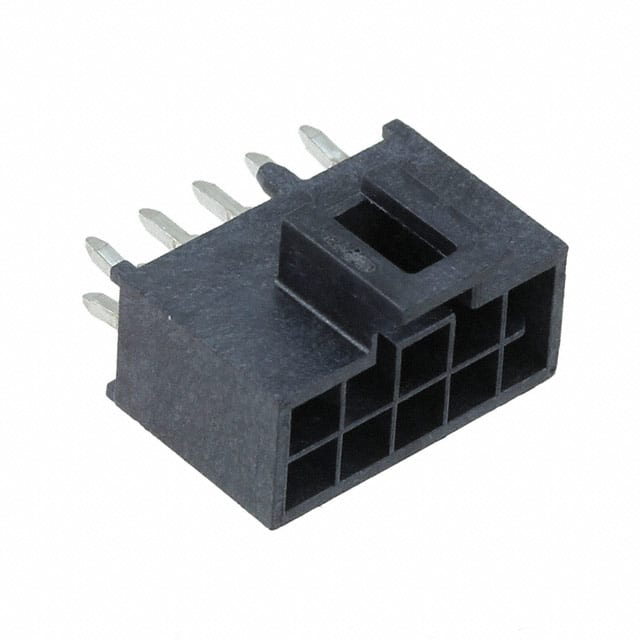

The Molex 1053101210 is a Nano-Fit Power Connector header designed for board-to-cable/wire applications. It offers 10 positions in 2 rows with a 2.50mm pitch and row spacing, providing a compact and reliable interconnection solution.
This header is rated for 8.0A per contact and 250V, with a contact resistance of 10 milliohms and dielectric withstanding voltage of 1500V. The insulation is black Liquid Crystal Polymer (LCP) rated UL94V-0, and the housing is glow wire capable. The operating temperature range is -40°C to 105°C.
The through-hole mounting with kinked pin solder termination ensures secure attachment to the PCB. The shrouded 4-wall design protects the male pins, and the latch holder fastening type provides secure mating with compatible Nano-Fit receptacles. A board guide feature aids in alignment during assembly.
The pitch is 2.50mm, with the same row spacing of 2.50mm.
The current rating is 8.0A per contact.
The voltage rating is 250V.
It uses through-hole mounting with kinked pin solder termination.
It has 10 positions in 2 rows, all positions loaded.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant per the datasheet.
