| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

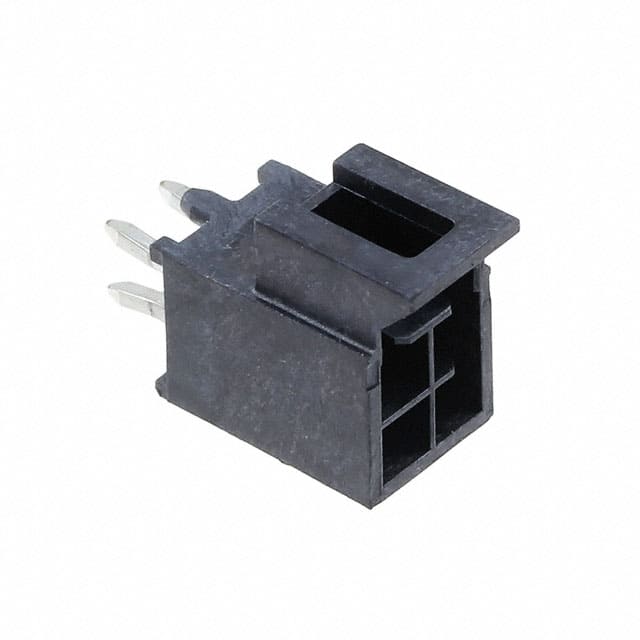

The Molex 1053101204 is a 4-position, 2.50mm pitch shrouded header part of the Nano-Fit Power Connector series. It features a 2-row configuration with through hole mounting and kinked pin solder termination. The male pin contacts are made of brass with a tin finish, providing reliable electrical performance. The header is fully shrouded with a 4-wall design and includes a latch holder for secure mating. It also incorporates a board guide feature for alignment. Electrical ratings include 8A current per contact, 250V voltage rating, 10mΩ contact resistance, and 1500V dielectric withstanding voltage. The insulation is made of black LCP (Liquid Crystal Polymer) with an insulation height of 9.05mm. Operating temperature range is -40°C to 105°C. The connector is designed for board-to-wire applications and is RoHS compliant. Key design attributes include fully isolated terminals, 4-point contact interface, and positive-lock housing to prevent accidental disengagement. This header is suitable for consumer appliances, telecommunications, networking, automotive interior lighting, and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
| 10+ | $1.71 | $1.71 |
| 100+ | $1.38 | $1.38 |
| 500+ | $1.27 | $1.27 |
| 1,000+ | $1.23 | $1.23 |
| 2,500+ | $1.18 | $1.18 |
| 5,000+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 4 positions arranged in 2 rows.
The pitch is 2.50mm (0.098 inches).
The current rating is 8.0A per contact.
The voltage rating is 250V.
The mounting type is through hole.
Yes, it is RoHS3 compliant as per the datasheet.
The operating temperature range is -40°C to 105°C.
