| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Length | |
| Contact Material | |
| Contact Resistance (Max) | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Current Rating (Max) | |
| Dielectric Withstanding Voltage | |
| Durability (Gold) | |
| Durability (Tin) | |
| Fastening Type | |
| Features | |
| Glow-Wire Capable | |
| Halogen Free | |
| Header Packaging | |
| Insertion Force to PCB | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance (Min) | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Terminal Packaging | |
| Termination | |
| Termination Style | |
| Unmating Force | |
| Voltage Rating | |
| Voltage Rating (max) |

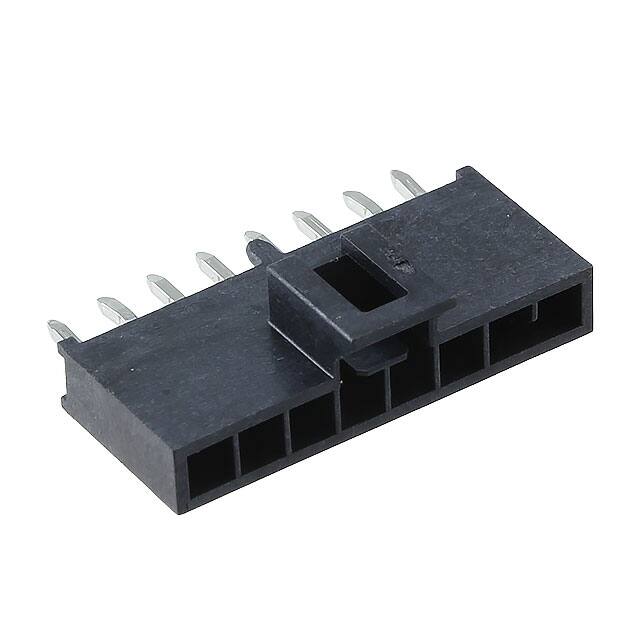

The Molex 1053091208 is a 8-position single row male pin header from the Nano-Fit Power connector family. It features a 2.50mm pitch and is shrouded with a 4-wall design and latch holder for secure mating. The header is through hole mount with kinked pin solder termination.
Electrical ratings include a maximum current of 8.0A per contact and a voltage rating of 250V. Contact resistance is 10mΩ maximum, dielectric withstanding voltage is 1500V, and insulation resistance is 1000MΩ minimum. The operating temperature range is -40°C to 105°C.
The header is constructed with a black Liquid Crystal Polymer (LCP) insulator and brass contacts with tin plating (15.0µin). It includes a board guide feature for alignment during assembly. Mechanical characteristics include mating and unmating forces of 3N each, and a durability of 20 cycles for tin plated contacts (50 cycles for gold). Packaging options include tray, embossed tape, and reel.
8 positions in a single row, all positions loaded.
The pitch is 2.50mm (0.098 inches).
The maximum current rating is 8.0A per contact.
The maximum voltage rating is 250V.
Through hole mounting with kinked pin solder termination.
-40°C to 105°C.
Tin plating with a thickness of 15.0µin (0.38µm).
