| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Cycles | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insertion Force to PCB | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Mating Force | |
| Max Current | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Options | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Unmating Force | |
| Voltage Rating |

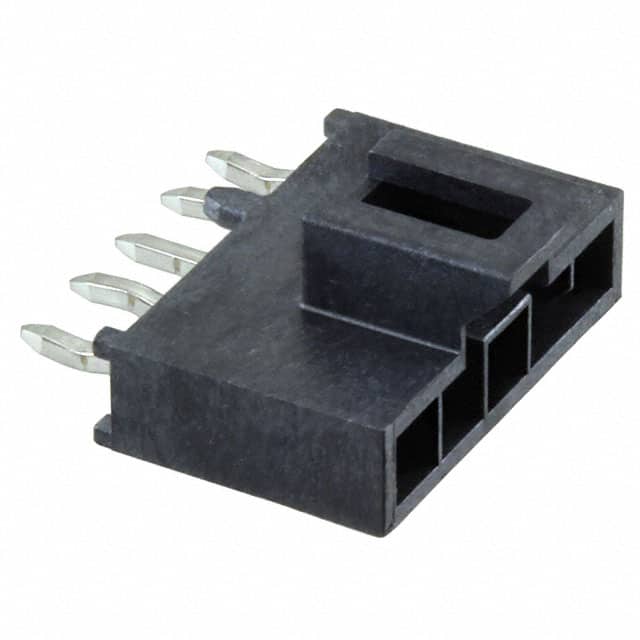

The Molex 1053091205 is a 5-position header from the Nano-Fit Power Connector series. It features male pin contacts arranged in a single row with a 2.50mm pitch. The connector is through-hole mounted with kinked pin solder termination. The housing is shrouded with four walls and includes a latch holder for secure mating. The insulation is made of black Liquid Crystal Polymer (LCP) and the contacts are high-conductivity copper with tin plating (0.38µm). Electrical ratings include a maximum current of 8.0A (varies by wire gauge) and a voltage rating of 250V. The operating temperature range is -40°C to 105°C. Contact resistance is 10 mΩ change over life, dielectric withstanding voltage is 1500V, and insulation resistance is 1000 MΩ. Mechanical features include a board guide, mating/unmating forces of 3N, and contact retention to housing of 27N. The connector is suitable for board-to-cable/wire applications. Packaging options include tray, embossed tape, and reel. The part is RoHS3 compliant and halogen free.
5 positions in a single row.
2.50mm (0.098 inches).
Maximum 8.0A, varies by wire gauge.
250V.
Through hole with kinked pin solder termination.
-40°C to 105°C.
