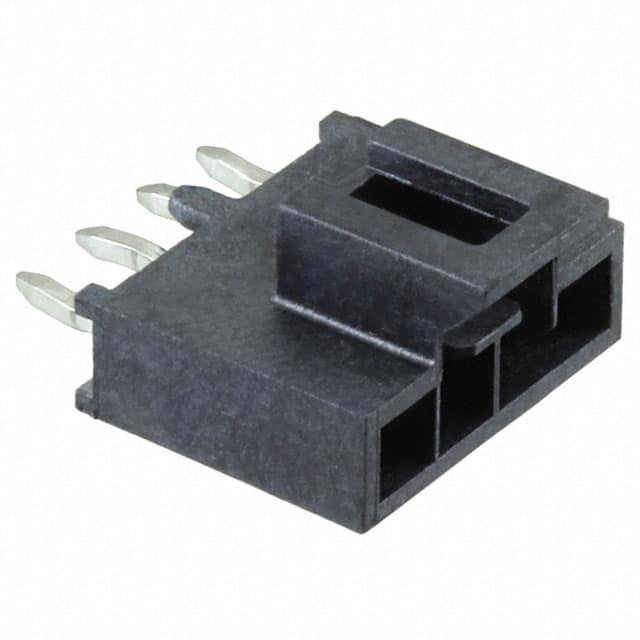

The Molex 1053091204 is a 2.50mm pitch, 4-position single row shrouded header from the Nano-Fit series, designed for board-to-wire connections. It features a fully shrouded 4-wall housing with a latch holder for secure mating.
Electrical specifications include a maximum current rating of 8.0A, voltage rating of 250V, contact resistance of 10mΩ, and insulation resistance of 1000MΩ. The operating temperature range is -40°C to 105°C.
Mechanically, the header uses through hole mounting with kinked pin solder termination. The insulator is black liquid crystal polymer (LCP) with a height of 9.05mm. Contacts are square brass with 0.38µm tin plating. It offers 20 mating cycles and features board guide for alignment.
Compliance includes RoHS3 and halogen-free. Packaging options include tray, embossed tape, and reel for pick-and-place assembly.
4 positions in a single row, all positions loaded.
2.50 mm (0.098 inches).
8.0A maximum, though actual rating may vary with wire gauge.
250V.
Through hole mounting with kinked pin solder termination.
-40°C to 105°C.
Yes, RoHS3 compliant and halogen-free.
