| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
325 pcs
|
325 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Insertion Force | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Current Rating (Max) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Glow-Wire Capable | |
| Halogen Free | |
| Insertion Force to PCB | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Mating Cycles (Tin) | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| UL | |
| Unmating Force | |
| Voltage Rating | |
| Voltage Rating (max) |

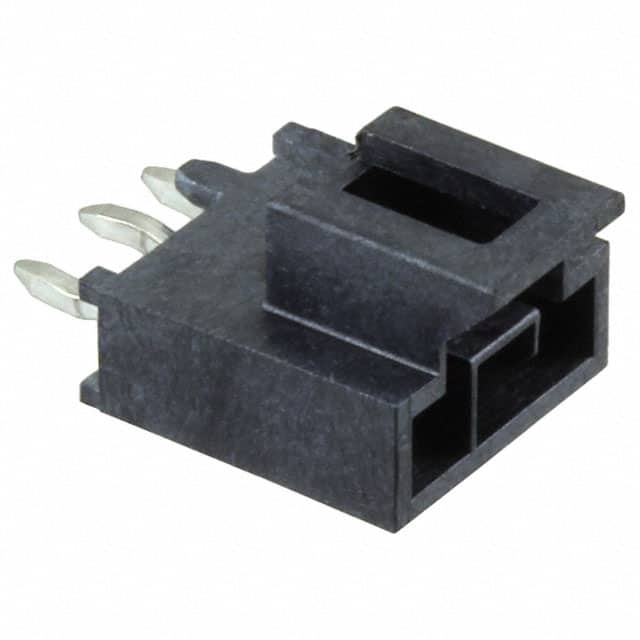

This Molex Nano-Fit power connector header features 3 positions in a single row with a 2.5mm pitch. It uses through hole termination with kinked pins for secure soldering. The shrouded 4-wall housing with latch holder provides reliable mating and protection. The insulator is made of liquid crystal polymer (LCP), black in color, with an operating temperature range of -40°C to 105°C. Electrical specifications include a current rating of 8A, voltage rating of 250V, contact resistance of 10 mΩ, dielectric withstanding voltage of 1500V, and insulation resistance of 1000 MΩ. The contact material is brass with tin plating (1.5µm thick), supporting up to 20 mating cycles. Mechanical forces include mating force of 3N, unmating force 3N, and contact retention to housing of 27N. Additional features include a board guide. The header is RoHS, halogen free, and glow wire compliant, with UL and CSA certifications.
This header has 3 positions in a single row.
The pitch is 2.50mm.
The maximum current rating is 8.0A.
The voltage rating is 250V.
The mounting type is through hole.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant, halogen free, and glow wire capable.
