| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,443 pcs
|
20443 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
784 pcs
|
784 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Insertion Force | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Halogen Free | |
| Housing Material | |
| Insertion Force to PCB | |
| Insulation Resistance | |
| Mating Cycles | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Unmating Force | |
| Voltage Rating |

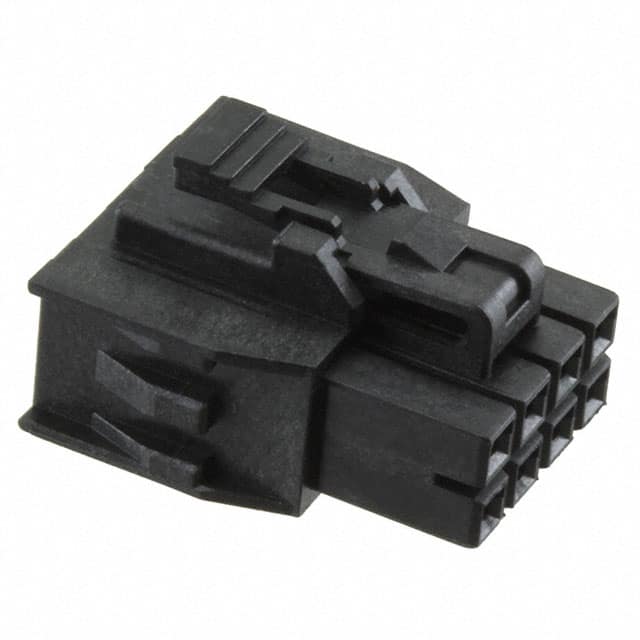

The Molex 1053081208 is a receptacle housing from the Nano-Fit power connector family. It features 8 positions arranged in 2 rows with a 2.50mm pitch and row spacing. The housing is made of nylon UL 94V-0 and accepts high-conductivity copper contacts with tin or gold plating. Mounting is free hanging (in-line) with a latch lock fastening for secure mating. Crimp termination is used for contact-to-wire connections.
Electrical ratings include 250V voltage and 8.0A current per contact. Contact resistance is 10mΩ over life, dielectric withstanding voltage is 1500V, and insulation resistance is 1000MΩ. Mechanical properties specify a mating force of 3N, unmating force of 3N, and a contact insertion force of 2.5N per contact. Durability is rated at 20 mating cycles for tin plating and 50 cycles for gold.
Design features include terminal position assurance (TPA) retainers, fully isolated terminals, and positive-lock anti-snag housing. These characteristics make the connector suitable for applications in consumer home appliances, telecommunications, networking, automotive interior lighting, and medical healthcare equipment.
It has 8 positions arranged in 2 rows.
The pitch is 2.50mm (0.098 inches).
The current rating is 8.0A per contact maximum.
The voltage rating is 250V maximum.
Free hanging (in-line) mounting with latch lock fastening.
Crimp termination is used for contact-to-wire connections.
Housing is nylon UL 94V-0; contacts are high-conductivity copper with tin or gold plating.
