| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,121 pcs
|
3121 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| SVHC Present | |
| Tape & Reel |

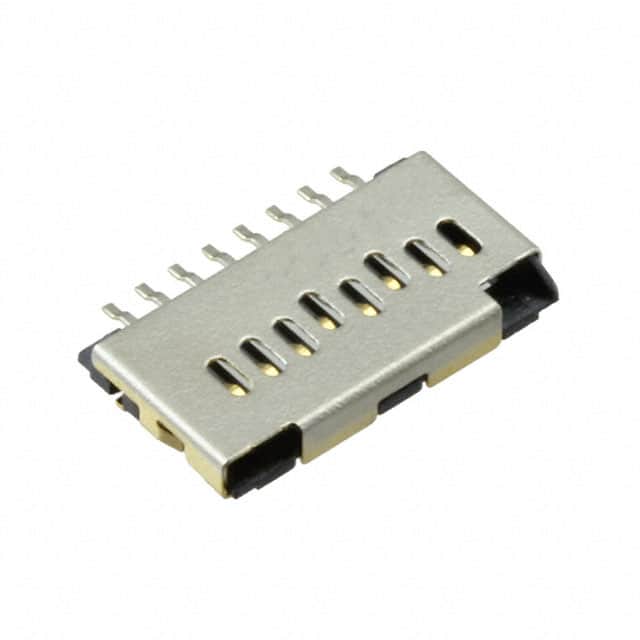

This is a microSD card connector from Molex, designed for surface mount right angle PCB mounting. It has 9 positions (8 data + 1 card detect switch) and a low profile of 1.45mm above board.
The connector features a push-in/pull-out insertion/removal method, with a built-in switch for card detection. Contacts are gold plated with 0.76µm thickness ensuring durability and signal integrity.
It is suitable for portable electronics, memory expansion in consumer devices, and embedded systems requiring a compact memory card interface. The right angle orientation allows for space-saving layouts on edge of PCB.
9 positions (8 data + 1 card detect switch).
Surface mount, right angle.
1.45mm (0.057 inches).
Secure Digital - microSD (microSD™).
Gold plating with 0.76µm thickness.
Yes, it includes a switch for card detection.
Push in, pull out.
