| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

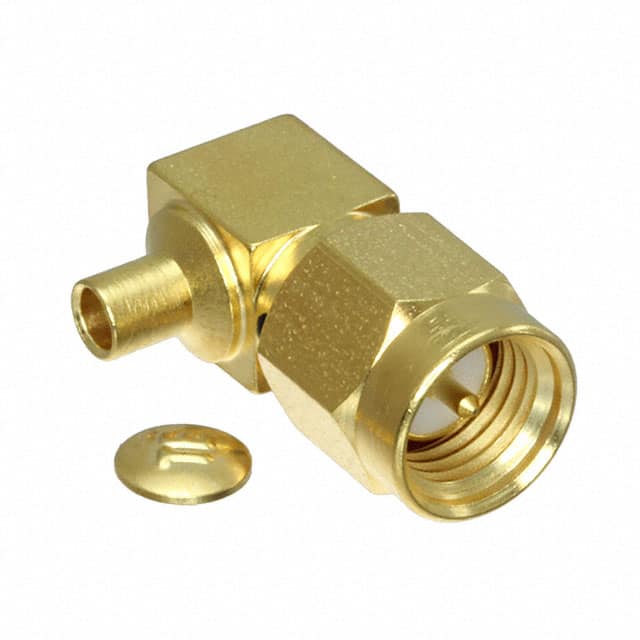

The TE Connectivity 1051156-1 is an SMA plug male pin connector designed for 50 Ohm characteristic impedance and operates up to 12 GHz. It features a right angle free hanging (in-line) mounting style, making it suitable for compact RF assemblies where space is constrained. The connector is terminated via solder for both the center contact and shield, ensuring reliable electrical and mechanical connections.
The center contact is made of beryllium copper for excellent conductivity and durability. The housing has a gold finish, providing corrosion resistance and good signal integrity. Threaded fastening ensures a secure mate with compatible SMA jacks. This connector is specifically designed for use with RG-405 (.085" semi-rigid) coaxial cable, commonly used in high-frequency applications such as test equipment and telecommunications.
Free hanging (in-line), right angle.
50 Ohms.
12 GHz.
SMA.
RG-405 (.085" semi-rigid).
Threaded.
Solder.
