| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
143 pcs
|
143 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Material | |
| Battery Cell Size | |
| Battery Type, Function | |
| Contact Material | |
| Height Above Board | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Style | |
| Tape & Reel | |
| Termination Style | |
| UL Flammability Rating |

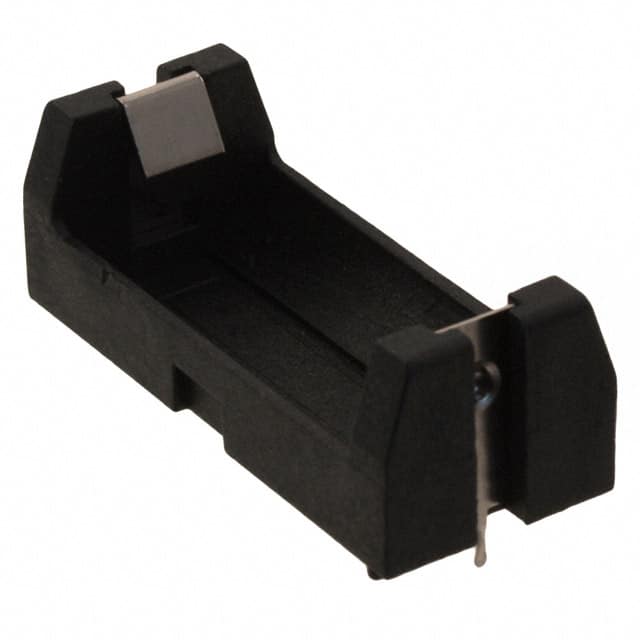

The Keystone 1051 is a battery holder designed to accommodate a single CR123A cylindrical cell. It features a through-hole mounting style with PC pin termination for secure attachment to a PCB. The housing is made from high-temperature Nylon 46 with a UL 94V-0 flammability rating, suitable for reflow or wave soldering processes. Contacts are stainless steel with a tin-nickel plate. The operating temperature range spans -50°C to 145°C, making it suitable for demanding environments. This holder provides a polarized design to prevent improper battery installation and requires no tools for battery insertion or removal. It is commonly used in computer memory backup, telecommunications, security systems, and industrial controls.
CR123A
1
Through-hole PCB mount with PC pin termination.
-50°C to 145°C
High-temp Nylon 46 with UL 94V-0 flammability rating.
15.24mm (0.600 inches)
