| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
53 pcs
|
53 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

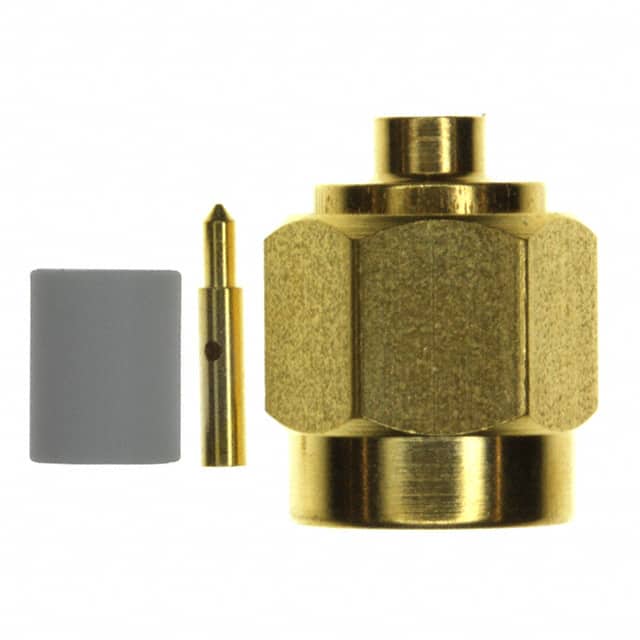

The 1050547-1 is a TE Connectivity SMA plug connector designed for high-frequency applications. It features a straight plug configuration with male pin contacts, 50 Ohm impedance, and a frequency range up to 18 GHz. The connector uses threaded coupling for secure fastening and is free hanging (in-line) for easy integration. Contact and shield terminations are solder type, ensuring reliable connections. The housing is gold plated, and the center contact is made of beryllium copper for durability and signal integrity. This connector is specifically designed for use with RG-405 (.085" semi-rigid) cable, making it suitable for RF and microwave systems in telecommunications, test equipment, and aerospace.
Typical applications include connecting coaxial cables in RF modules, antennas, and instrumentation. The 50 Ohm impedance ensures compatibility with standard RF systems, while the 18 GHz bandwidth supports high-speed data and signal transmission. The threaded fastening provides vibration resistance in demanding environments.
For assembly, the solder termination requires standard soldering tools. The free-hanging mounting allows flexible placement without additional hardware. The gold housing offers corrosion resistance and good conductivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.32 | $22.32 |
| 10+ | $18.97 | $18.97 |
| 25+ | $17.78 | $17.78 |
| 50+ | $16.93 | $16.93 |
| 100+ | $16.12 | $16.12 |
| 250+ | $15.11 | $15.11 |
| 500+ | $14.39 | $14.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
18 GHz.
SMA plug, male pin.
RG-405 (.085" semi-rigid) cable.
Free hanging (in-line).
Solder for both contact and shield.
Threaded.
