| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
192 pcs
|
192 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Tolerance |

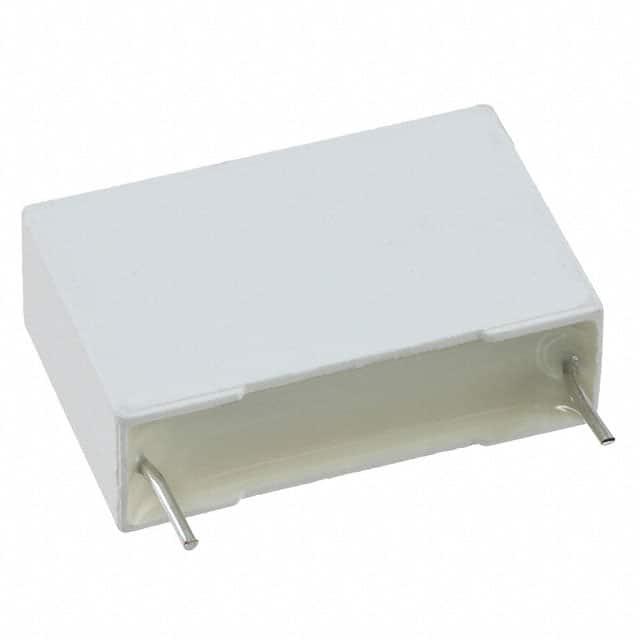

This Illinois Capacitor 104PPB630K is a metallized polypropylene film capacitor. It offers a capacitance value of 0.1 µF with a tolerance of ±10%. The capacitor is rated for a DC voltage of 630V and an AC voltage of 400V.
Designed for demanding applications, it operates within a temperature range of -55°C to 105°C. The dielectric material is Polypropylene (PP), metallized, making it suitable for commutation, high pulse, DV/DT, and snubber applications.
Mechanically, the component features a radial package with a seated height of 0.669" (17.00mm). Its dimensions are 1.043" L x 0.335" W (26.50mm x 8.50mm) with a lead spacing of 0.886" (22.50mm). The termination style is PC Pins, and it is intended for through-hole mounting.
Environmental compliance includes RoHS3 compliance, REACH unaffected status, and an MSL rating of 1 (Unlimited). The HTSUS code is 8532.25.0070, and the ECCN is EAR99.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance of the 104PPB630K is 0.1 µF.
The DC voltage rating for the 104PPB630K is 630V.
The tolerance of the 104PPB630K capacitor is ±10%.
The operating temperature range for this film capacitor is -55°C to 105°C.
The dielectric material used in the 104PPB630K is Polypropylene (PP), metallized.
The dimensions of the 104PPB630K are 1.043" L x 0.335" W (26.50mm x 8.50mm).
The lead spacing for the 104PPB630K is 0.886" (22.50mm).
