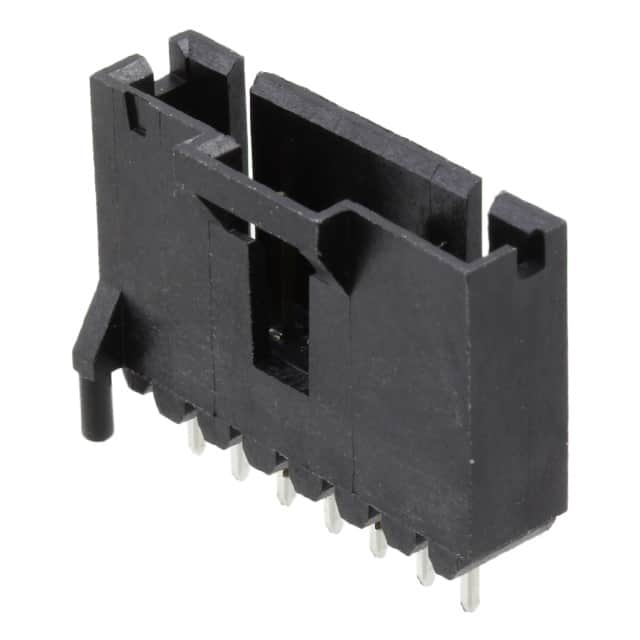

104809-6 TE Connectivity 104809-6 is a 7-position, single-row, shrouded header with male pins. It features a 2.54mm pitch, through-hole mounting, and press-fit/solder termination.
Mfr Part #:

104809-6

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 104809-6 is a 7-position, single-row, shrouded header with male pins. It features a 2.54mm pitch, through-hole mounting, and press-fit/solder termination.
✓ Total Stock: 1,006 pcs
$ Price Range: $1.94 - $3.43

104809-6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
1,006 pcs
On Request
1006 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

104809-6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

104809-6 Description

Short technical summary and product information.

TE Connectivity 104809-6 is a rectangular connector header with 7 male pins arranged in a single row. It has a 2.54mm pitch, shrouded 4-wall design, and latch holder for secure mating.



Key specifications include contact material brass with tin-lead finish, insulation material thermoplastic UL94 V-0, current rating 3A, and operating temperature range -65°C to 105°C. Features include board guide and keying slot.



Mounting is through-hole with press-fit and solder termination options. Overall contact length is 13.84mm, insulation height is 13.60mm. Suitable for board-to-board or cable applications.

104809-6 Quick Information

Product Type: Header, Male Pins
Series: MTE
Canonical Name: Header, Male Pins, 7 Position, 2.54mm Pitch, Through Hole, Shrouded
Subcategory: Male Pins

104809-6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

104809-6 Estimated Pricing

Qty Low High
1+ $3.43 $3.43
10+ $3.12 $3.12
26+ $2.95 $2.95
104+ $2.74 $2.74
260+ $2.39 $2.39
520+ $2.33 $2.33
1,014+ $2.02 $2.02
2,522+ $1.94 $1.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

104809-6 Features

  • 7-position single-row shrouded header.
  • 2.54mm pitch for compact designs.
  • Latch holder for secure connection.
  • Through-hole mounting with press-fit/solder.
  • Rated 3A with UL94 V-0 insulation.

104809-6 Applications

  • Board-to-board interconnection in electronic assemblies.
  • Cable-to-board connections in industrial equipment.

104809-6 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 104809-6 have?

7 positions.

What is the pitch of the 104809-6 header?

2.54mm (0.100 inches).

What is the current rating of the 104809-6?

3A per contact.

What is the mounting type for the 104809-6?

Through hole, with press-fit and solder termination.

What is the operating temperature range?

-65°C to 105°C.

What is the contact finish?

Tin-lead, 15.0µin (0.38µm) thickness.

What is the insulation material and flammability rating?

Thermoplastic, UL94 V-0.
