| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,565 pcs
|
2565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
530 pcs
|
530 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

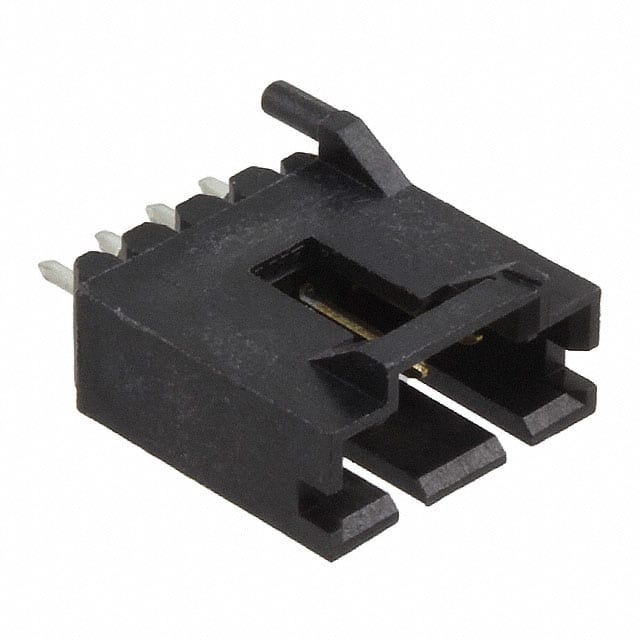

The TE Connectivity 104809-3 is a 4 position single row shrouded header designed for board-to-board or cable applications. It features a 2.54mm (0.100") pitch and through hole mounting with press-fit and solder termination options. The connector is fully shrouded with a 4-wall design and includes a latch holder for secure mating.
The header uses square brass male pins with a tin-lead contact finish of 15.0µin (0.38µm). The insulation is black thermoplastic rated UL94 V-0, with an insulation height of 13.60mm. Additional features include a board guide and keying slot for alignment. The operating temperature range is -65°C to 105°C, and the current rating is 3A.
4 positions in a single row.
2.54mm (0.100").
3A.
Through hole with press-fit and solder termination.
-65°C to 105°C.
Black thermoplastic with UL94 V-0 rating.
