| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

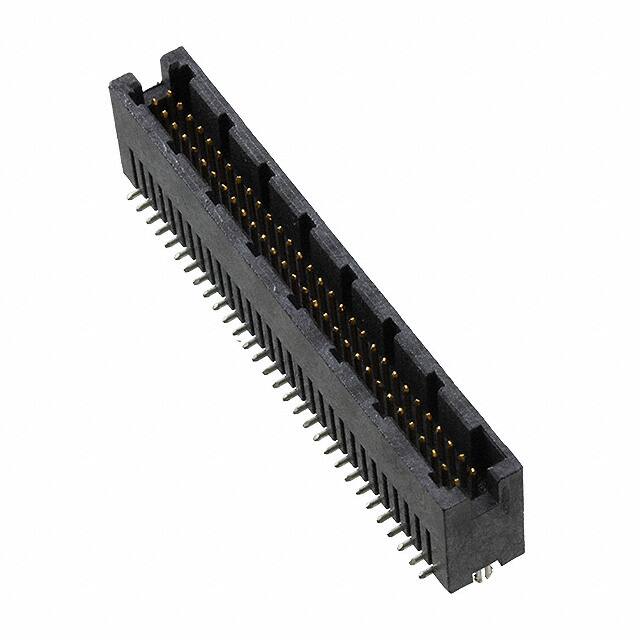

The 104693-6 is a 60-position header connector from TE Connectivity. It features two rows of male pins with a 1.27mm pitch for high-density board-to-board interconnections. The connector is shrouded with a 4-wall design and includes a board lock feature for secure mechanical retention on the PCB. The insulation is made of black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The insulation height is 9.33mm, and the contact length is 3.05mm.
Electrically, the connector is rated for 0.5A per contact. It operates over a temperature range of -65°C to 105°C. Contacts are made of phosphor bronze with a 30µin (0.76µm) tin-lead plating. The contact shape is circular. The mounting type is surface mount (SMD) with solder termination. The connector is designed for push-pull mating and is suitable for board-to-board stacking applications.
Packaging information is limited; the standard package quantity is not verified. The part is available from distributors like Digi-Key (part number A114720-ND). Compliance data for RoHS, REACH, and MSL is unverified and should be confirmed with the manufacturer.
The connector has 60 positions, all loaded, arranged in 2 rows.
The pitch is 1.27mm (0.050 inches).
The current rating is 0.5A per contact.
The mounting type is surface mount (SMD) with solder termination.
The operating temperature range is -65°C to 105°C.
Contacts are made of phosphor bronze with a tin-lead plating of 30µin (0.76µm).
The insulation is made of liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
