| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | 95 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

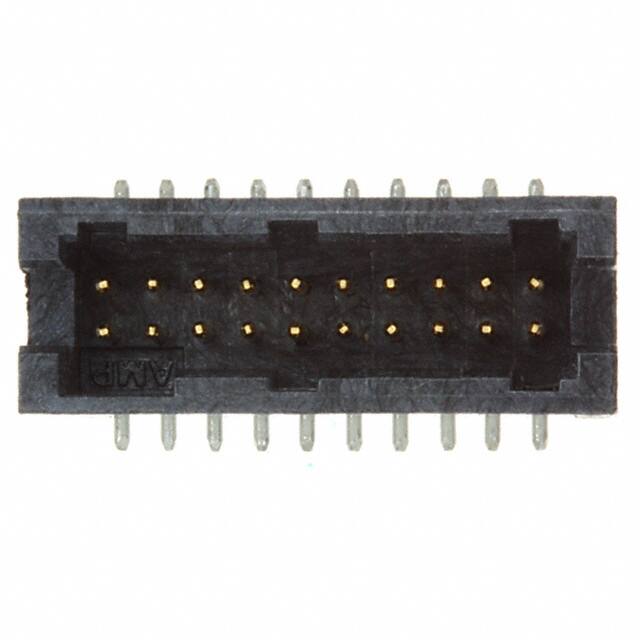

The TE Connectivity 104656-2 is a 20-position, 2-row, 1.27mm pitch shrouded header designed for board-to-board applications. This surface mount connector features male pins with a circular contact shape and tin-lead plating over phosphor bronze contacts. The insulation is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
Key mechanical specifications include a contact length of 3.05mm, insulation height of 7.57mm, and row spacing of 1.27mm. The connector is fully shrouded with a 4-wall design and uses a push-pull fastening mechanism. It includes a board lock feature for secure attachment during soldering.
Electrically, each contact is rated for 0.5A. The operating temperature range is -65°C to 105°C. The connector is surface mount with solder termination. All 20 positions are loaded.
The pitch is 1.27 mm (0.050 inches).
It has 20 positions arranged in 2 rows.
Each contact is rated for 0.5 A.
Surface mount (SMD) with solder termination.
-65°C to 105°C.
Yes, it is a shrouded 4-wall design.
Phosphor bronze contacts with tin-lead finish (0.76 µm).
